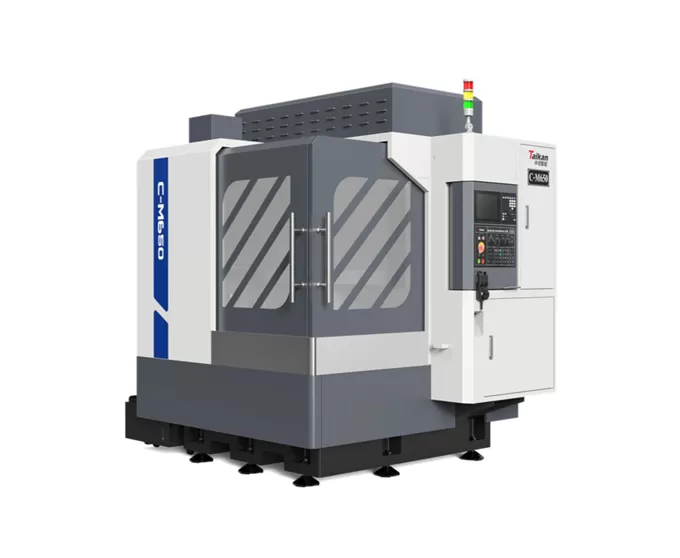

Name: C-M650 Single-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-M650 Single-Head High-Speed Precision Engraving Center

Mitsubishi E80A CNC System

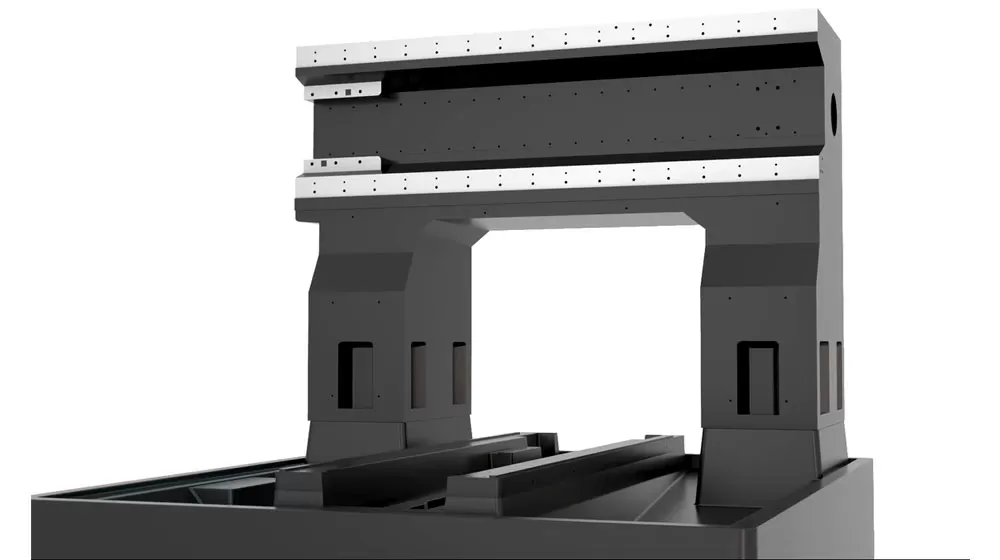

Gantry-Style Mineral Casting Bed and Beam

The bed and beam are constructed from mineral casting, offering superior vibration resistance for stable machining.

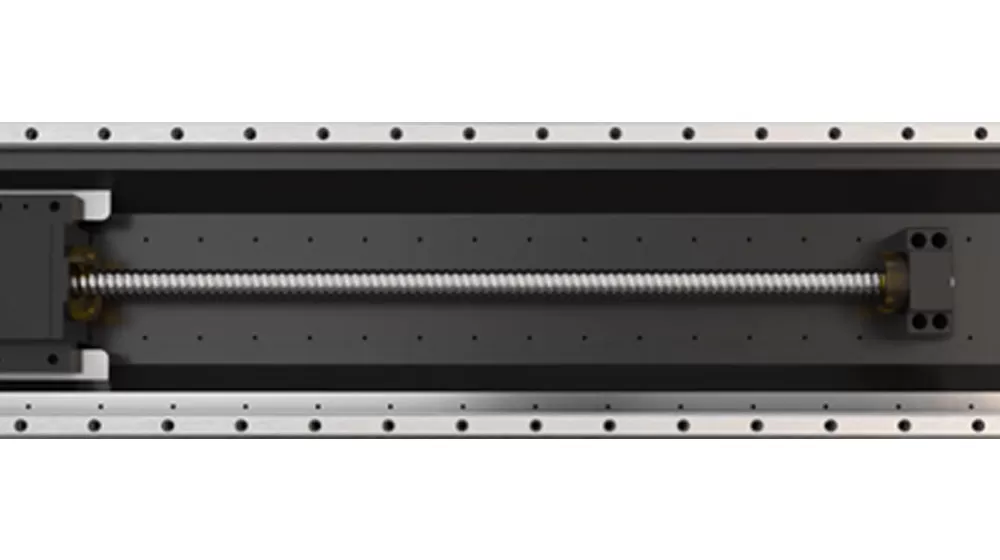

High-Precision Components

Standard configuration includes NSK ball screws and THK linear guides, ensuring stable and reliable machining accuracy.

16-Tool Servo Tool Magazine

Equipped with a 16-tool servo-driven tool magazine for efficient tool changes.

Gantry-Style Mineral Casting Bed and Beam

Application of C-M650 Single-Head High-Speed Precision Engraving Center

The C-M650 is ideal for the precision machining of copper electrodes, molds, precision parts, medical instruments, and precision instruments. It is specifically designed for industries that require high-precision components.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-M650 Single-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm )	600*500
	Distance from table to spindle nose (mm)	120~380
	Maximum load-bearing weight ( Kg)	300
journey	X-direction travel (mm)	600
	Travel in Y direction (mm)	500
	Z travel (mm)	260
Spindle	Spindle power (K w)	8.5
	Spindle maximum speed (rpm)	30 000
	Spindle diameter (mm)	φ120
	Spindle tool change method	Pneumatic tool changer
	Shank form	HSK-E40
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.003
Tool magazine	Tool magazine capacity	13T
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	13
Other parameters	Dimensions (front and rear * left and right * up and down mm)	223018202350
	Weight (Approx. weight: Kg)	4800
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
