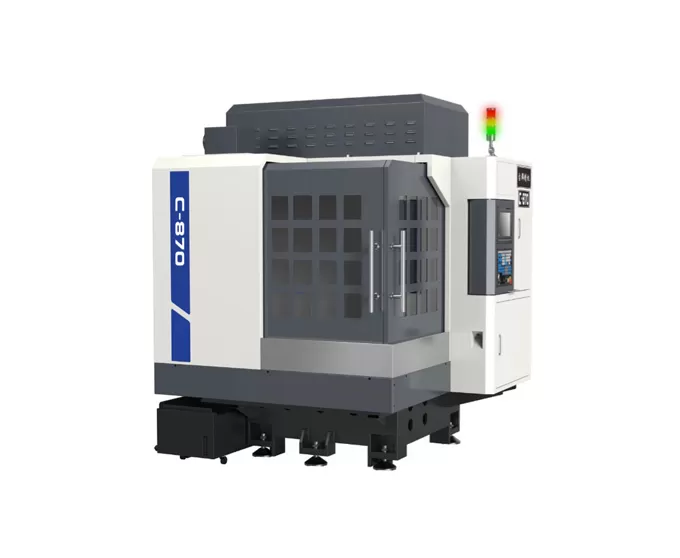

C-870 Single-Head High-Speed Precision Engraving Center

workbench

Table size (mm)

800*700

Distance from table to spindle nose (mm)

120~440

Maximum load-bearing weight (Kg)

journey

X-direction travel (mm)

700

Travel in Y direction (mm)

800

Z travel (mm)

320

Spindle

Spindle power (K w)

7.5

Spindle maximum speed (rpm)

24 000

Spindle diameter (mm)

φ120

Spindle tool change method

Pneumatic tool changer

Shank form

BT30

Feed rate

Maximum dry run feed speed (m/min)

30

Maximum cutting feed rate (m/min)

12

Machine tool accuracy

Positioning accuracy: X/Y/Z (mm)

0.008

Repeated positioning accuracy: X/Y/Z (mm)

0.005

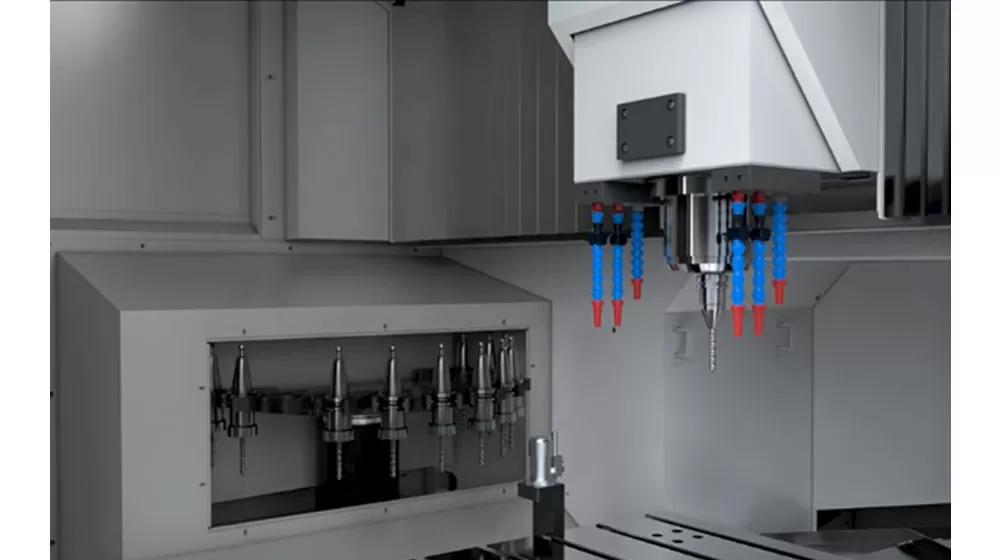

Tool magazine

Tool magazine capacity

12T

Tool magazine form

Semi-umbrella servo tool magazine

power source

Air pressure (Mpa)

≥0.6

Electricity demand (Kw)

13.5

Other parameters

Dimensions (front and rear *
left and right * up and down mm)

Weight (Approx. weight: Kg)

4500

Whether to configure network
transmission and monitoring functions

Have

Whether to configure the tool setter

Have
