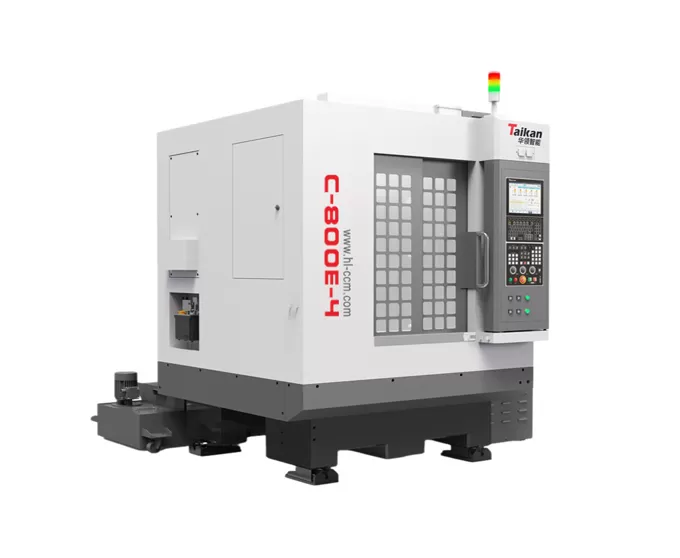

Name: C-800E-2/3/4 Multi-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of C-800E-2/3/4 Multi-Head High-Speed Precision Engraving Center

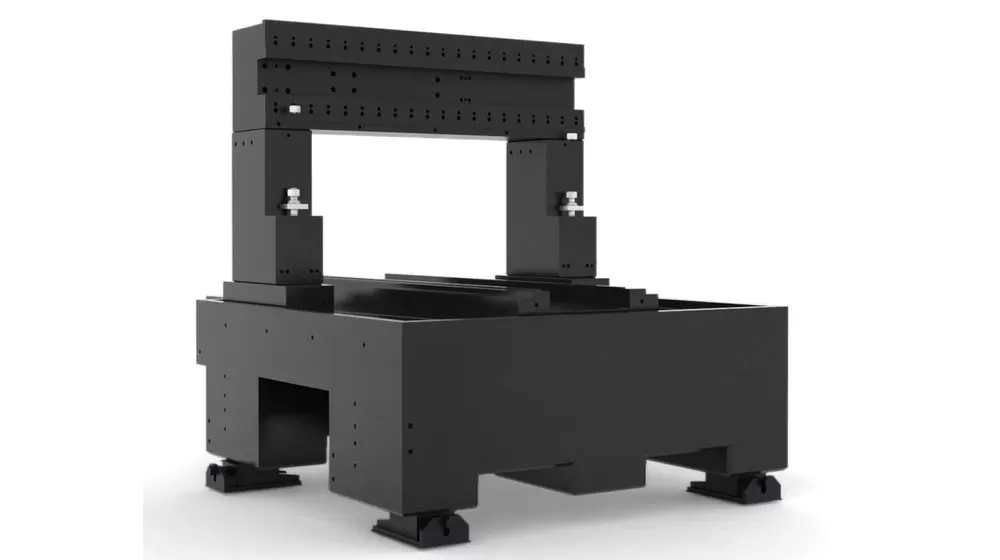

Natural Granite Bed and Beam

The machine's bed and beam are made from natural granite, providing excellent vibration absorption and corrosion resistance.

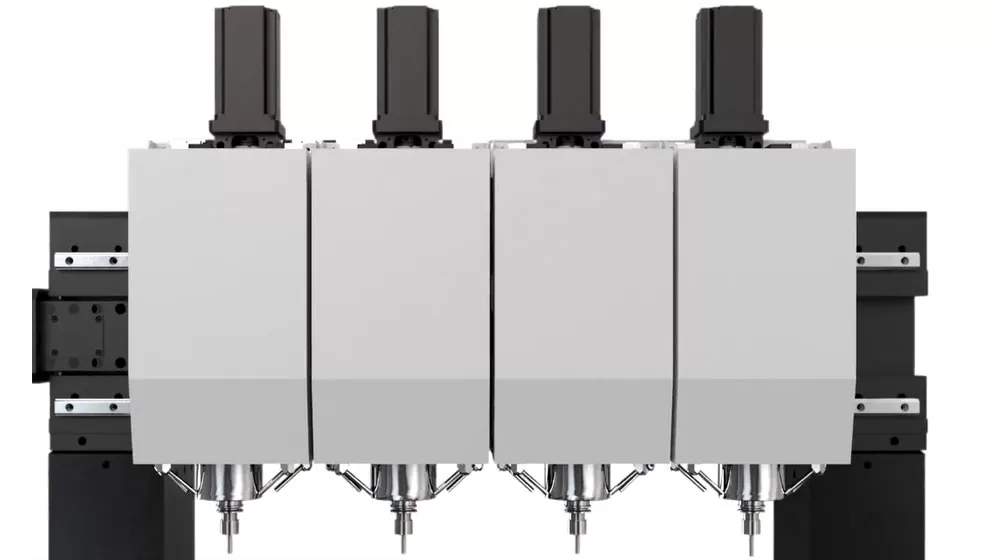

Customizable High-Speed Precision Spindles

Different high-speed precision spindles can be selected based on specific product processing requirements, offering flexibility in operations.

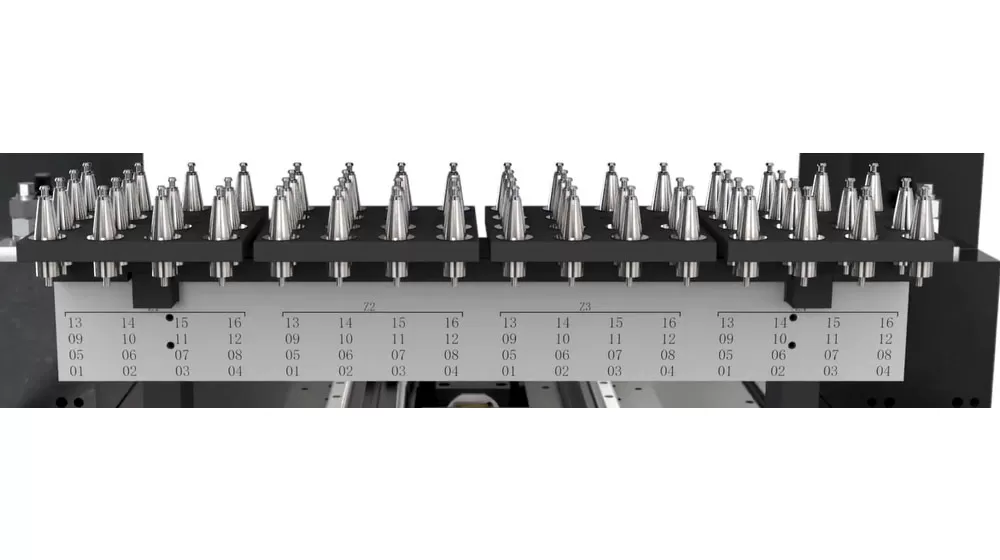

25-Tool Linear Tool Magazine

Standard configuration includes a 25-tool linear tool magazine with a sluice-gate style protective door that fully isolates the tool magazine from the machining area, offering superior chip protection. The tool change process is fast, with a low failure rate, ensuring high efficiency.

Application of C-800E-2/3/4 Multi-Head High-Speed Precision Engraving Center

C-800E-2/3/4 is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, such as mobile phone camera brackets, buttons, and smartwatch housings

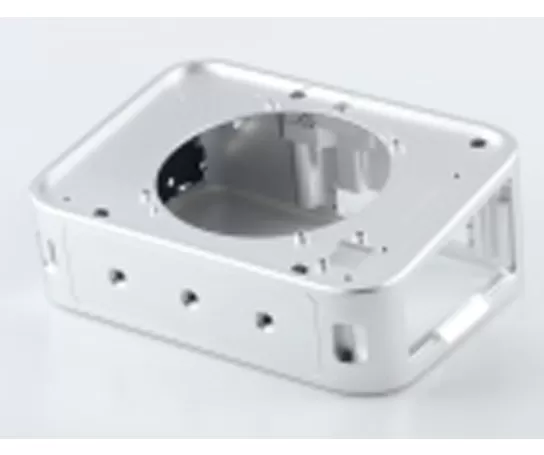

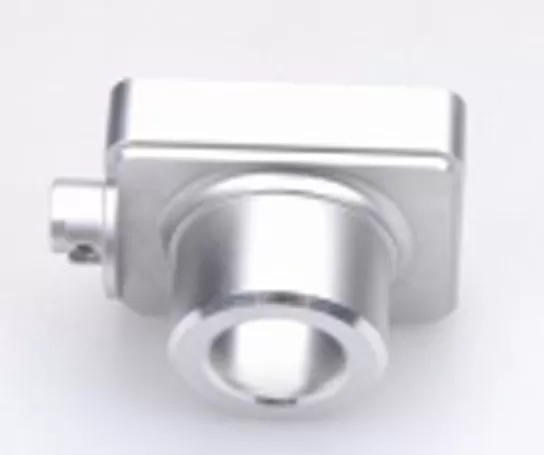

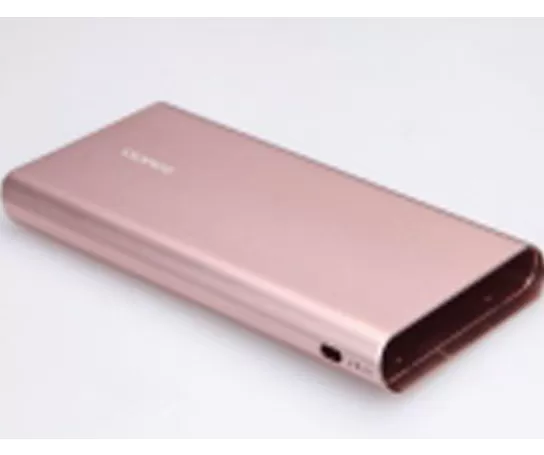

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-800E-2/3/4 Multi-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	840*500
	Distance from table to spindle nose (mm)	85~235
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	210
	Travel in Y direction (mm)	500
	Z travel (mm)	150
Spindle	Spindle power (Kw)	2.5
	Spindle maximum speed (rpm)	60000
	Spindle diameter (mm)	φ62
	Spindle tool change method	Pneumatic tool changer
	Shank form	T11
Feed rate	Maximum dry run feed speed (m/min)	18
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	25T *4
Tool magazine	Tool magazine form	Straight line knife magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	18
Other parameters	Dimensions (front and rear * left and right * up and down mm)	155014502082
	Weight (Approx. weight: Kg)	3200
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
