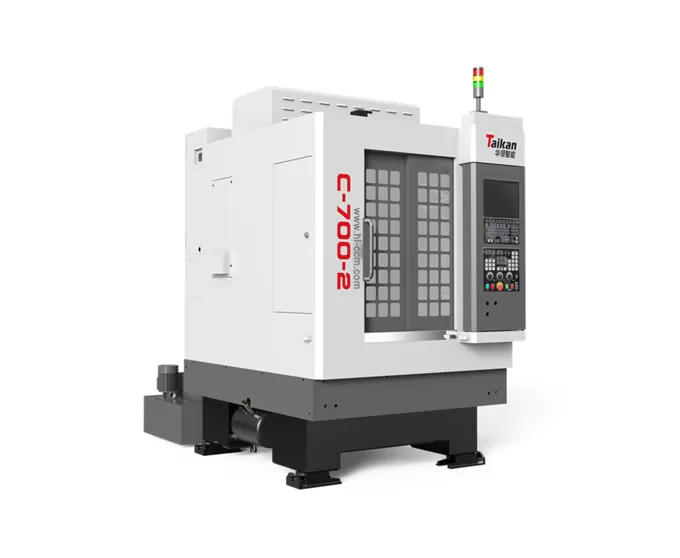

Name: C-700-2 Multi-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-700-2 Multi-Head High-Speed Precision Engraving Center

Natural Granite Bed and Beam

The machine features a natural granite bed and beam, providing excellent vibration absorption and corrosion resistance.

Customizable High-Speed Precision Spindle

Flexibility to choose different high-speed precision spindles based on specific product requirements.

Optimized Compact Design with 12-Tool Linear Magazine

Equipped with a 12-tool linear tool magazine, the machine is designed to minimize its footprint while maintaining effective travel distances, increasing overall factory space efficiency.

Customizable High-Speed Precision Spindle

Optimized Compact Design with 12-Tool Linear Magazine

Application of C-700-2 Multi-Head High-Speed Precision Engraving Center

C-700-2 is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, including mobile phone camera brackets, buttons, and smartwatch housings.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-700-2 Multi-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	700*500
	Distance from table to spindle nose (mm)	60~210
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	350
	Travel in Y direction (mm)	500
	Ztravel (mm)	150
Spindle	Spindle power (Kw)	2.5
	Spindle maximum speed (rpm)	60000
	Spindle diameter (mm)	φ62
	Spindle tool change method	Pneumatic tool changer
	Shank form	T11
Feed rate	Maximum dry run feed speed (m/min)	30
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	12T * 2
Tool magazine	Tool magazine form	Straight line knife magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	9.5
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	2600
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
