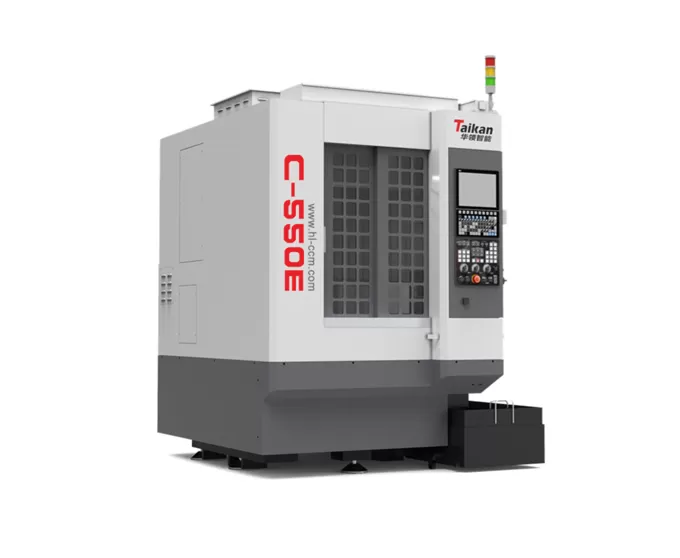

Name: C-550E Single-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-550E Single-Head High-Speed Precision Engraving Center

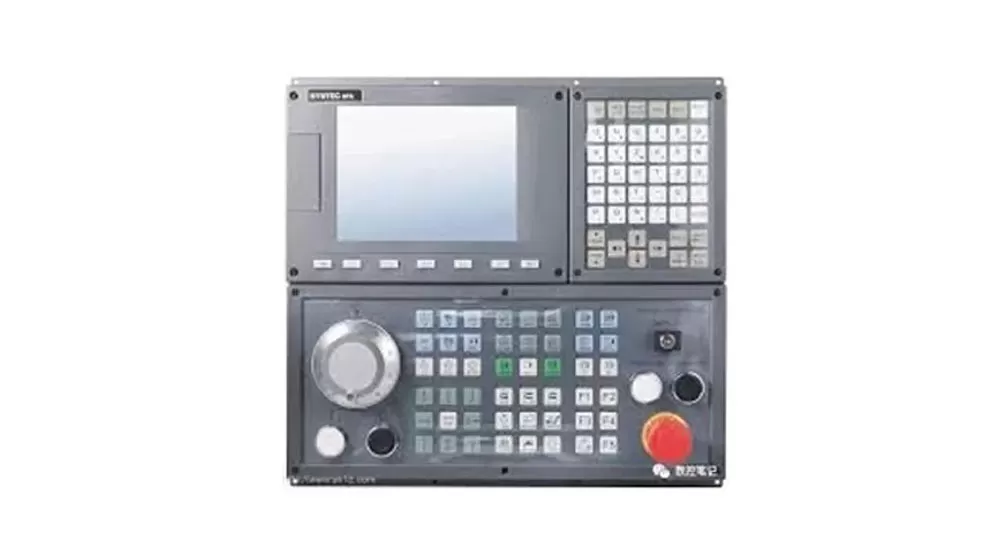

Syntec CNC System

Equipped with a Syntec CNC system, offering precision and reliability.

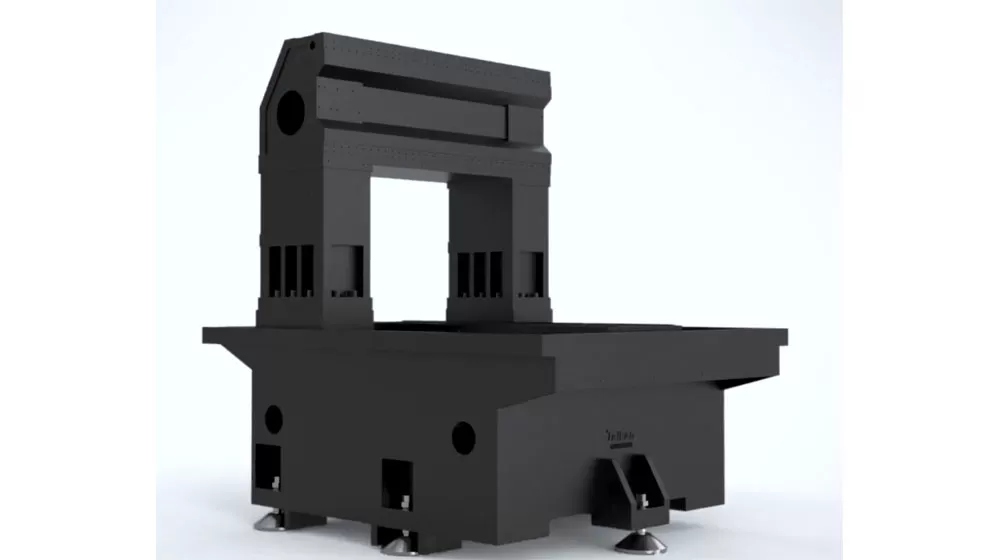

Fixed-Beam Gantry Design

Features a fixed-beam gantry structure with a cast iron bed and beam for high rigidity and stability.

Compact Design

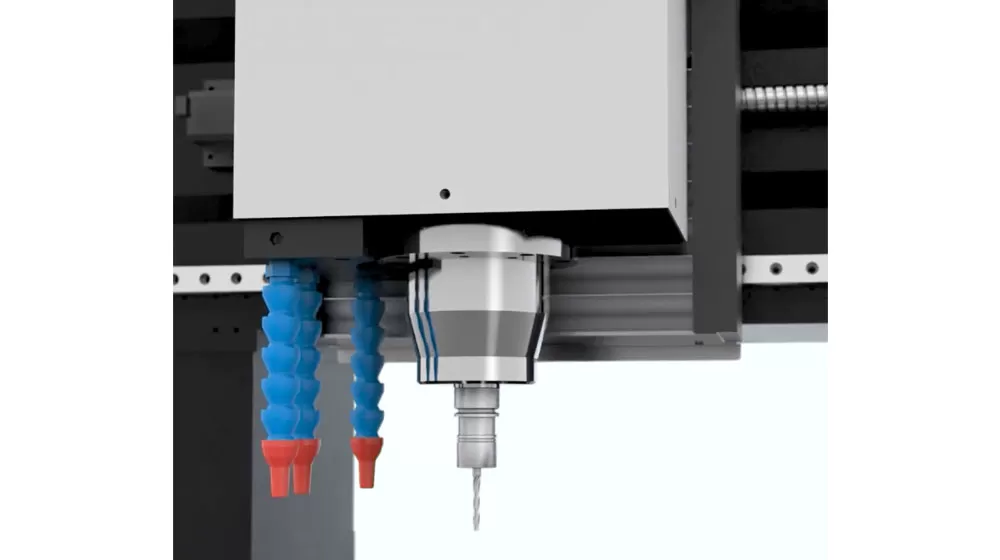

Standard configuration includes a high-precision 36,000 RPM electric spindle (HSK E32).

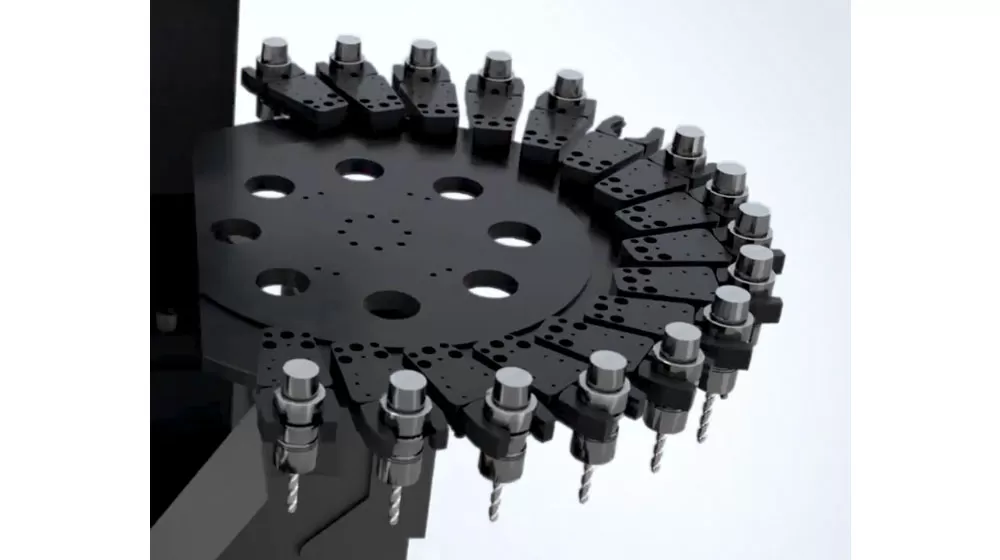

Servo Tool Magazine

Comes standard with a 16-tool servo-driven tool magazine, with an optional 21-tool magazine for added capacity.

Application of C-550E Single-Head High-Speed Precision Engraving Center

The C-550E is ideal for the precision machining of copper electrodes, small molds, small metal components, 3C products, precision parts for aerospace, medical instruments, and small copper components. It excels in producing highly accurate and complex parts across a range of industries.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-550E Single-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm )	550*500
	Distance from table to spindle nose (mm)	100~300
	Maximum load-bearing weight ( Kg)	150
journey	X-direction travel (mm)	550
	Travel in Y direction (mm)	450
	Z travel (mm)	200
Spindle	Spindle power (K w)	6.0
	Spindle maximum speed (rpm)	36 000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	HSK-E30
Feed rate	Maximum dry run feed speed (m/min)	30
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	16T
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	11
Other parameters	Dimensions (front and rear * left and right * up and down mm)	189018602200
	Weight (Approx. weight: Kg)	2700
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
