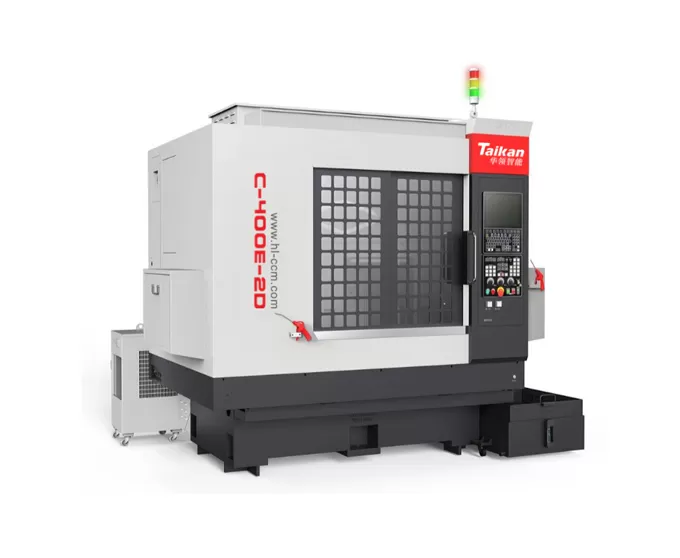

Name: C-400E-2D Multi-Worktable High-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-400E-2D Multi-Worktable High-Speed Machining Center

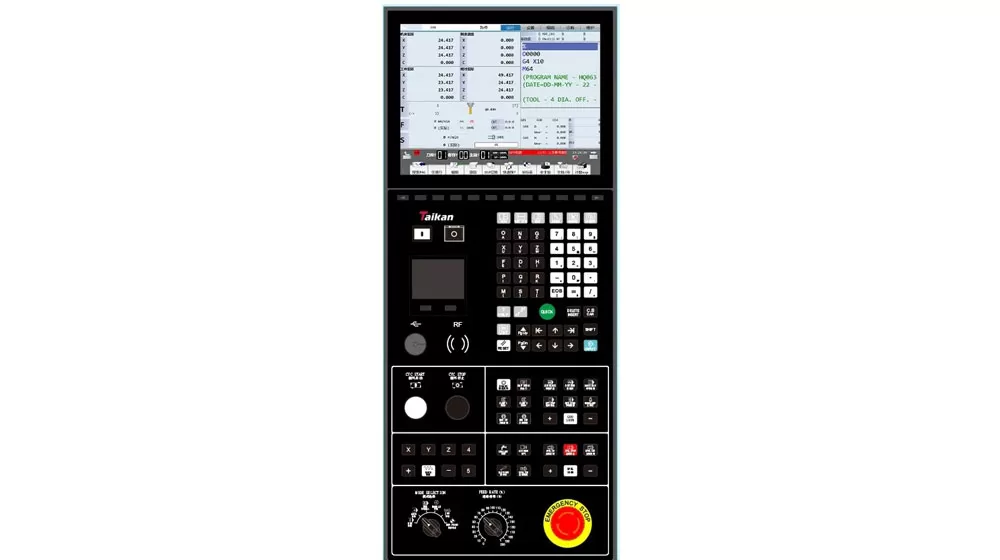

Taikan CNC System

Equipped with the high-performance Taikan CNC system for reliable control and precision.

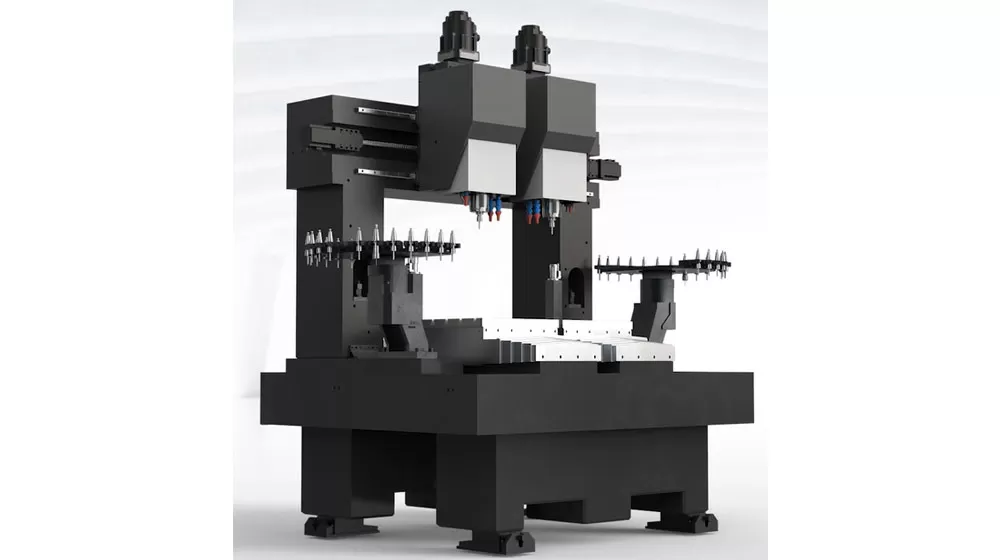

Cast Iron Bed with Aging Treatment

The cast iron bed is treated for stability, and the beam features an M-type three-point support, providing strong rigidity and minimizing deformation.

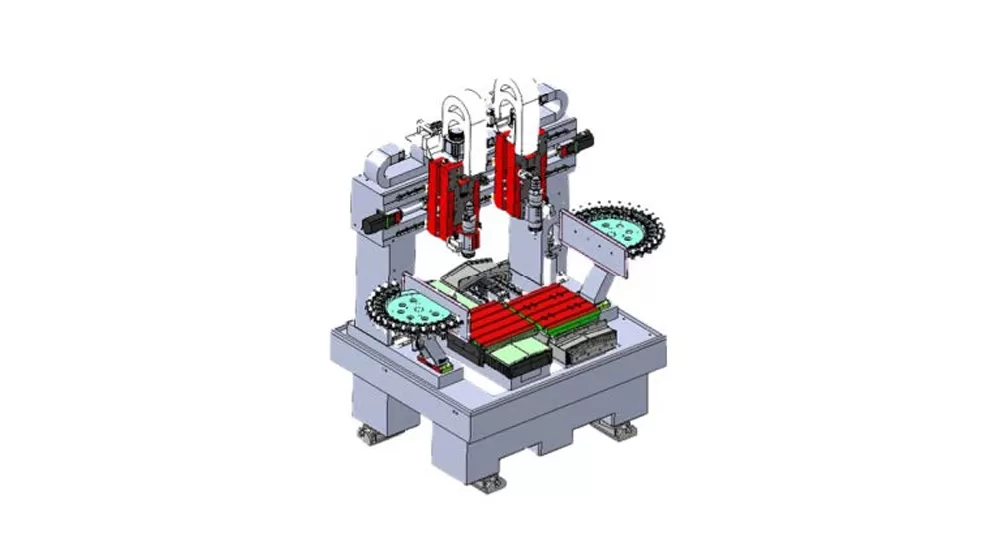

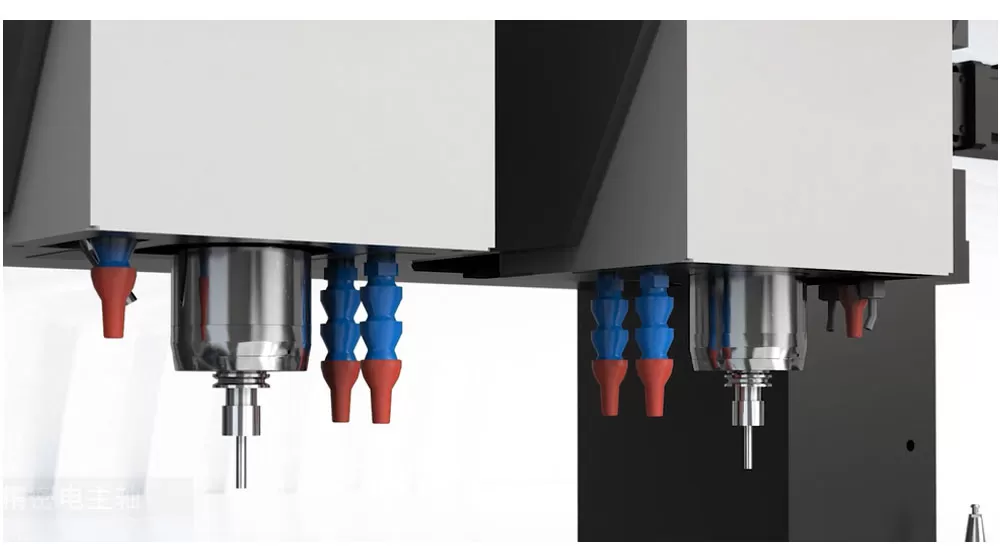

Independent Dual-Spindle Travel

Each channel operates independently, allowing multiple products to be machined simultaneously without interference. Independent tuning and compensation ensure high precision.

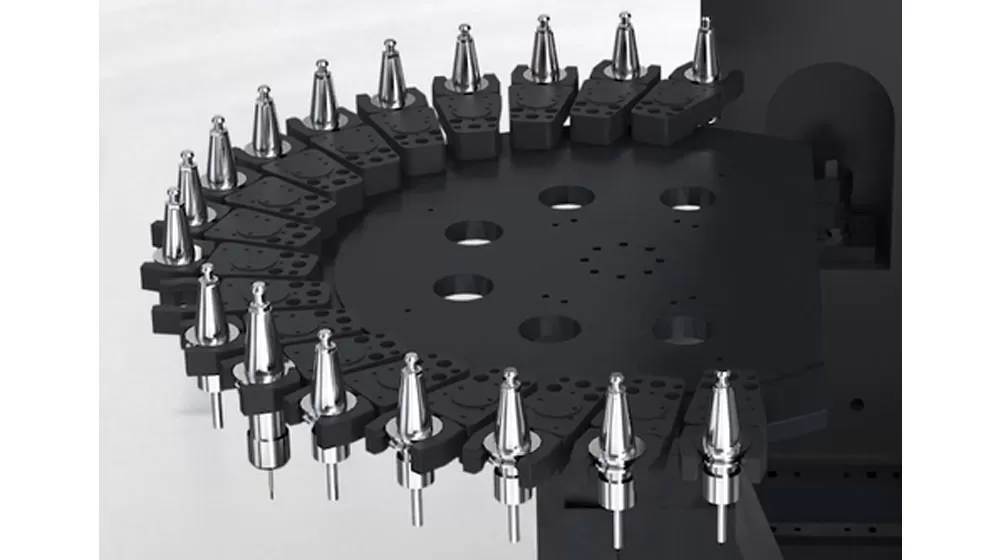

18-Tool Servo Tool Magazine

The tool magazine supports a wide variety of machining processes such as milling, drilling, and tapping with high efficiency.

Application of C-400E-2D Multi-Worktable High-Speed Machining Center

The C-400E-2D is ideal for mass production of small metal parts, fine shape finishing, and machining side holes for mobile phone frames. It is also suited for producing watch bezels and electronic cigarette casings.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-400E-2D Multi-Worktable High-Speed Machining Center

name	project	Parameters
workbench	Table size (mm)	400*400
	Distance from table to spindle nose (mm)	210~410
	Maximum load-bearing weight (Kg)	100
journey	X-direction travel (mm)	400
	Travel in Y direction (mm)	400
	Z travel (mm)	200
Spindle	Spindle power (Kw)	4.0
	Spindle maximum speed (rpm)	40000
	Spindle diameter (mm)	φ80
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 20
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	18T*2
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	15
Other parameters	Dimensions (front and rear * left and right * up and down mm)	165028052480
	Weight (Approx. weight: Kg)	3800
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
