Name: C-400-3D Multi-Worktable High-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-400-3D Multi-Worktable High-Speed Machining Center

Cast Iron Bed and Beam Structure

The machine bed and beam are made of cast iron, with the entire structure optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines.

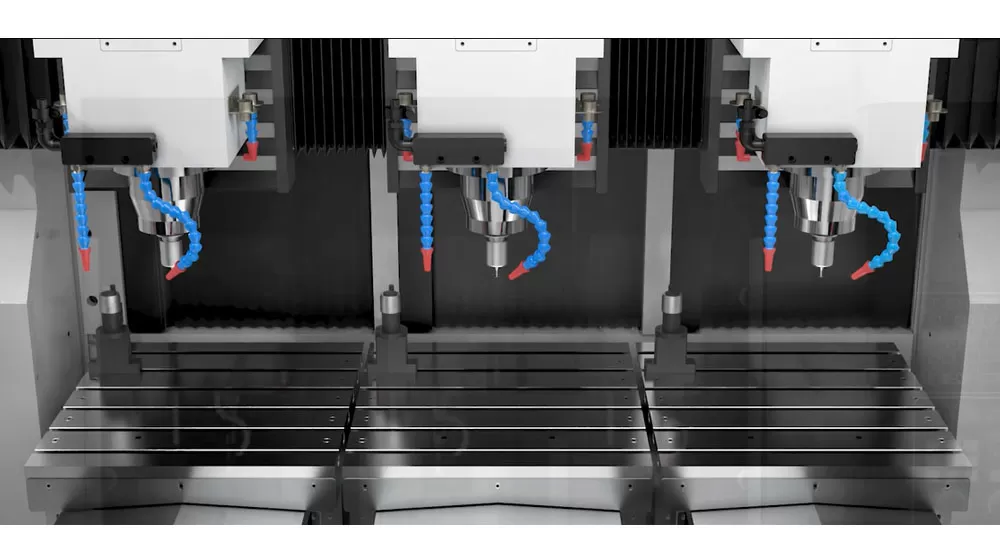

Three-Spindle, Three-Channel Design

Combines the efficiency of a three-Spindlemachine with the capability of independent compensation for each channel, ensuring stable dimensional accuracy. It delivers 2.5-3 times the efficiency of single-Spindlemachines.

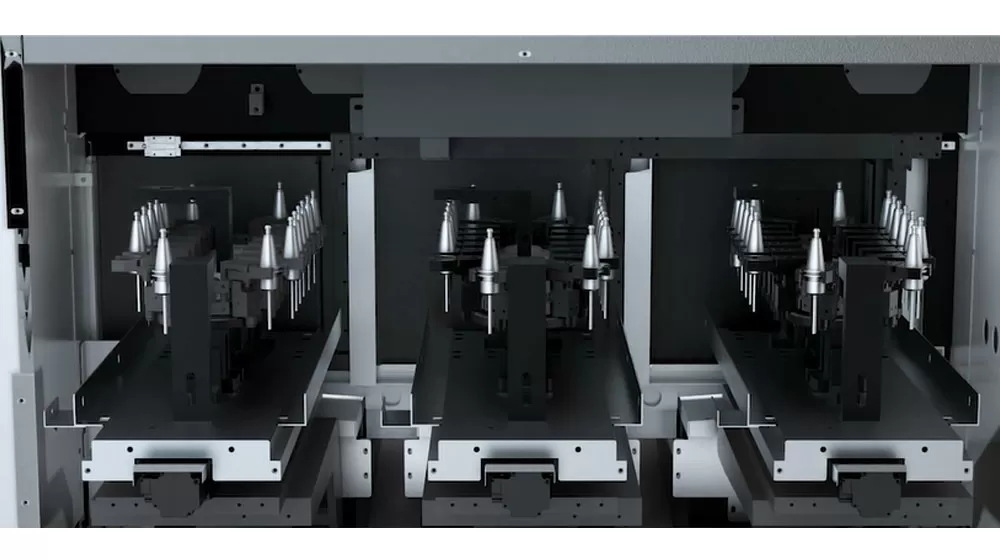

Standard 21-Tool Chain-Type Tool Magazine

Large tool capacity provides the capability to complete complex parts in a single clamping. The tool magazine’s protective design ensures long-term stable machining performance.

Standard 21-Tool Chain-Type Tool Magazine

Application of C-400-3D Multi-Worktable High-Speed Machining Center

The C-400-3D is ideal for the roughing and finishing of parts such as mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related plates, shells, and box components in the 3C industry. It is also suited for the mass production of panels and cover parts in industries such as instrumentation and electronics.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-400-3D Multi-Worktable High-Speed Machining Center

name	project	Parameters
workbench	Table size (mm)	420*500
	Distance from table to spindle nose (mm)	155~355
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	400
	Travel in Y direction (mm)	400
	Z travel (mm)	200
Spindle	Spindle power (Kw)	6.0
	Spindle maximum speed (rpm)	36000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 25
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	21T*3
Tool magazine	Tool magazine form	Chain servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	29
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	5000
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
