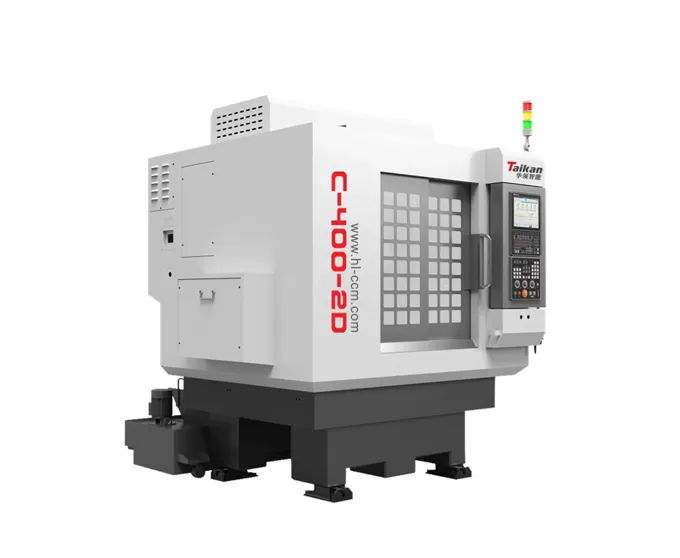

Name: C-400-2D Multi-Worktable High-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-400-2D Multi-Worktable High-Speed Machining Center

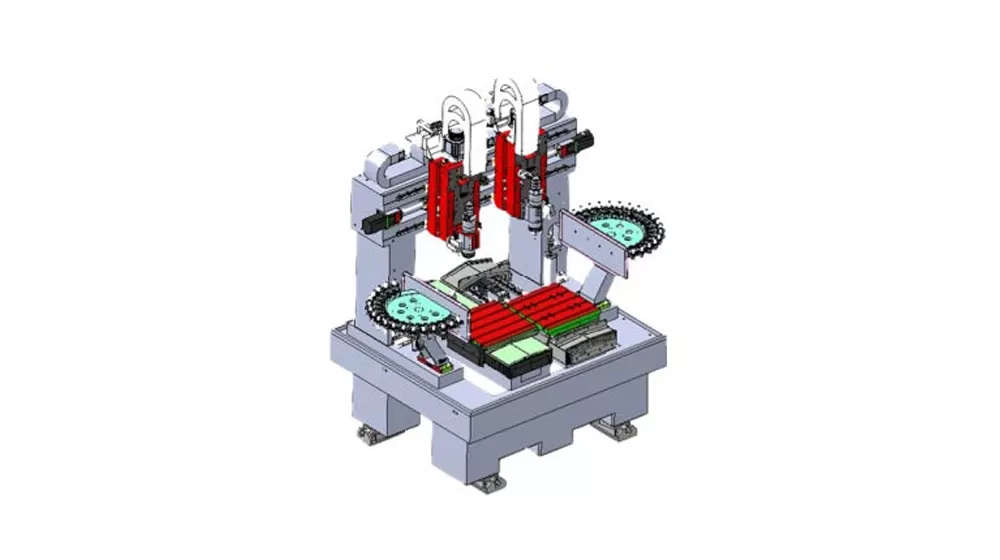

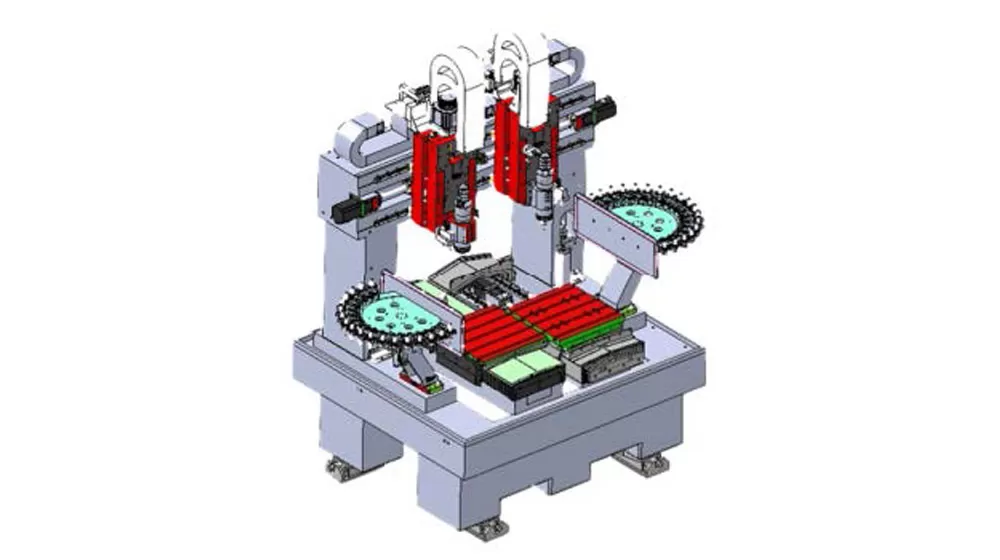

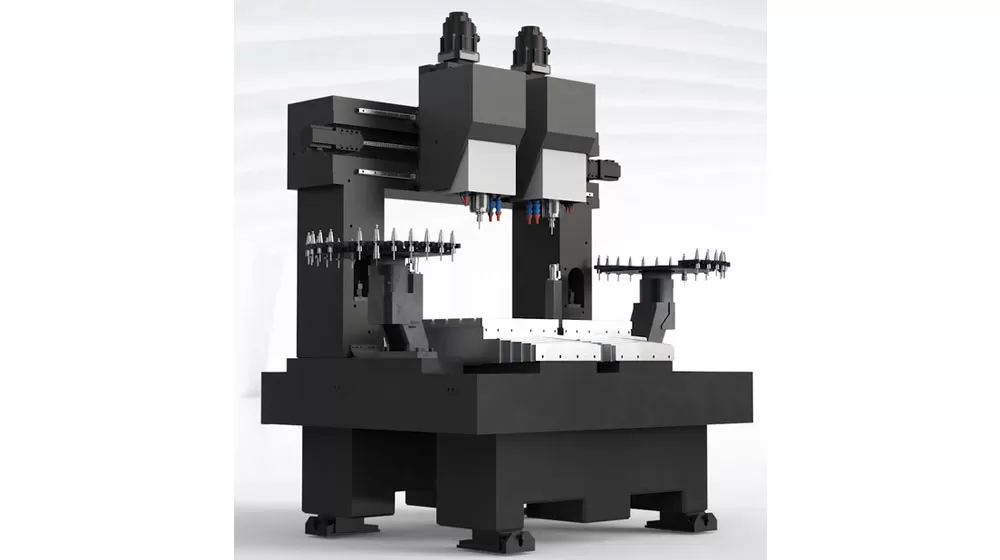

Fixed-Beam Gantry Structure

The fixed-beam gantry design enhances stability and rigidity during machining.

Marble Structure for Vibration Resistance

The body is constructed from marble, providing excellent vibration resistance and thermal stability for precise and consistent machining.

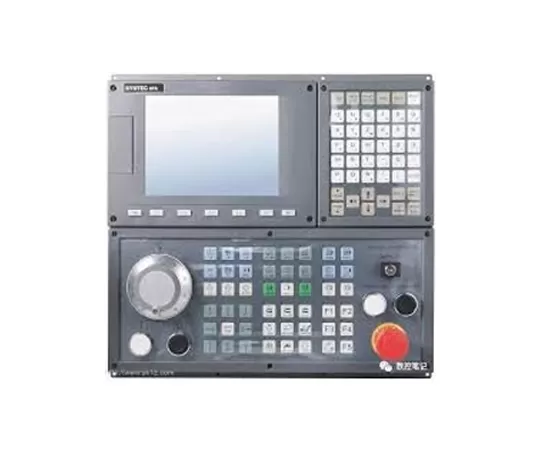

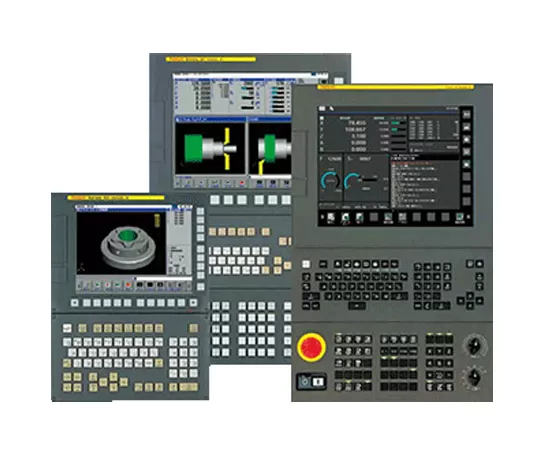

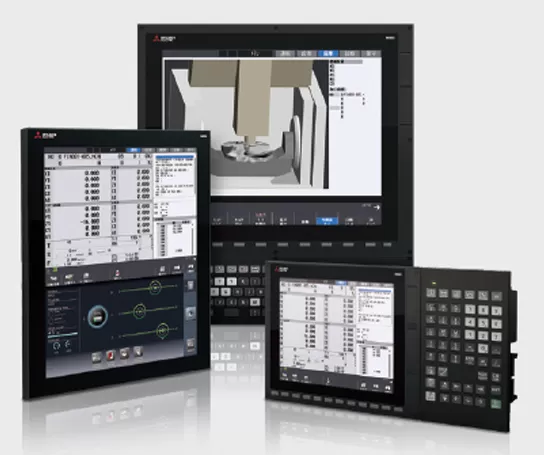

Dual-Channel CNC Control

A single CNC system controls two channels, allowing for independent compensation during machining.

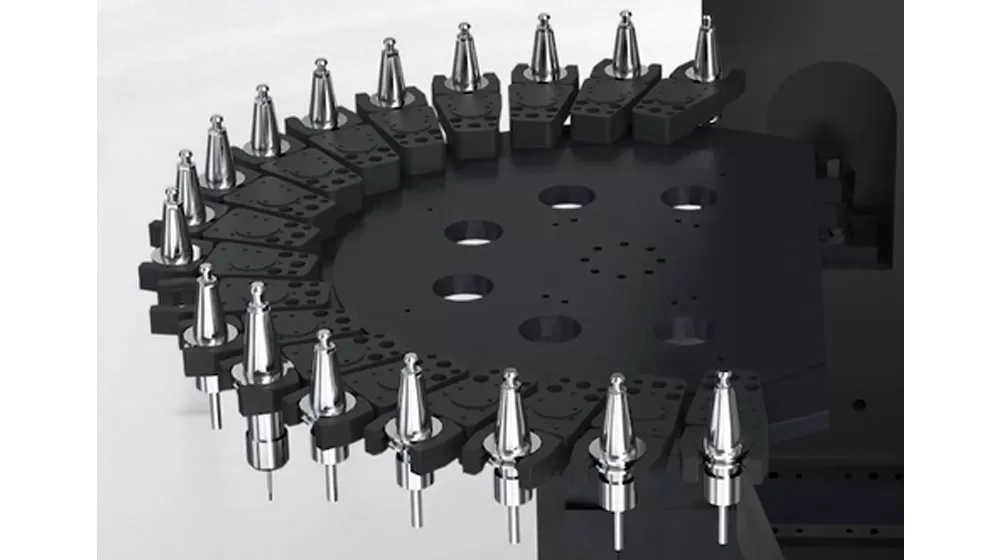

Standard 18-Tool Servo Tool Magazine

The servo-driven tool magazine enhances efficiency and ensures smooth tool changes.

Marble Structure for Vibration Resistance

Application of C-400-2D Multi-Worktable High-Speed Machining Center

The C-400-2D is ideal for the precision machining of aluminum alloy products in the 3C industry, including mobile phone frames, buttons, SIM card trays, and camera brackets, as well as aluminum and stainless steel components for smart home devices and wearable technology. It is also suitable for precision machining of tablet and laptop components

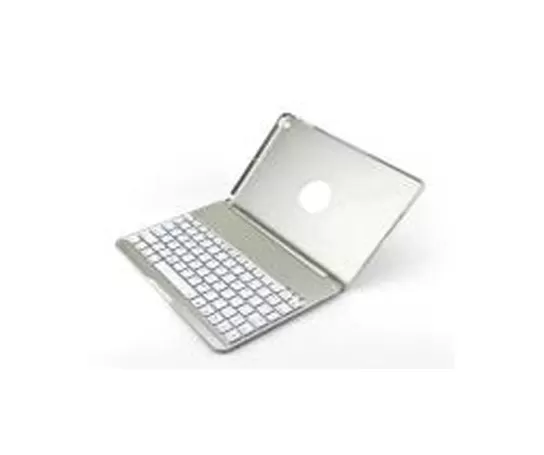

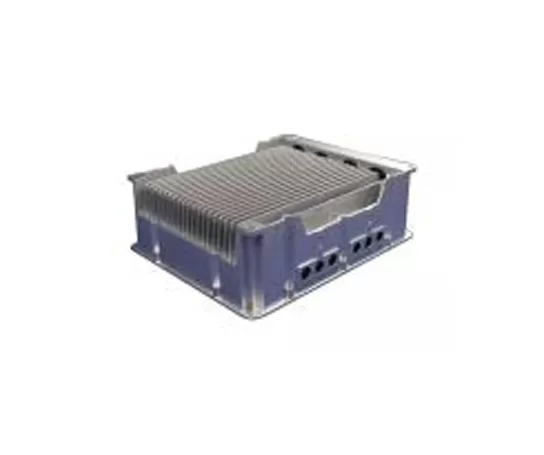

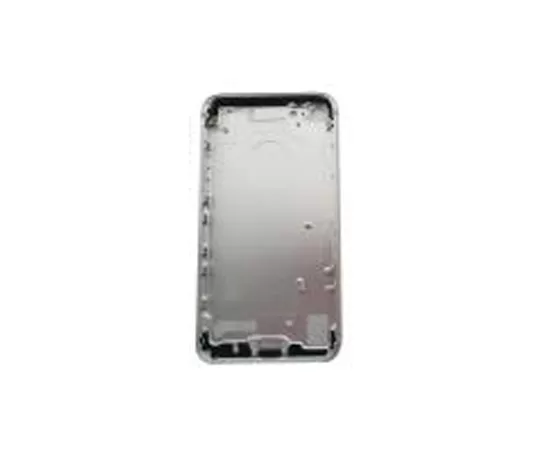

Workpiece Example 1

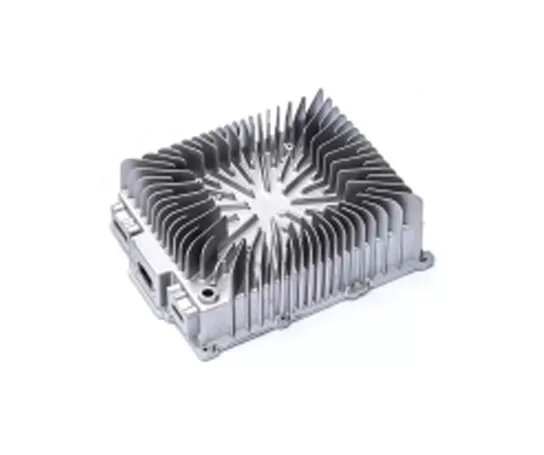

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-400-2D Multi-Worktable High-Speed Machining Center

name	project	Parameters
workbench	Table size (mm)	400*400
	Distance from table to spindle nose (mm)	250~450
	Maximum load-bearing weight (Kg)	100
journey	X-direction travel (mm)	400
	Travel in Y direction (mm)	400
	Ztravel (mm)	200

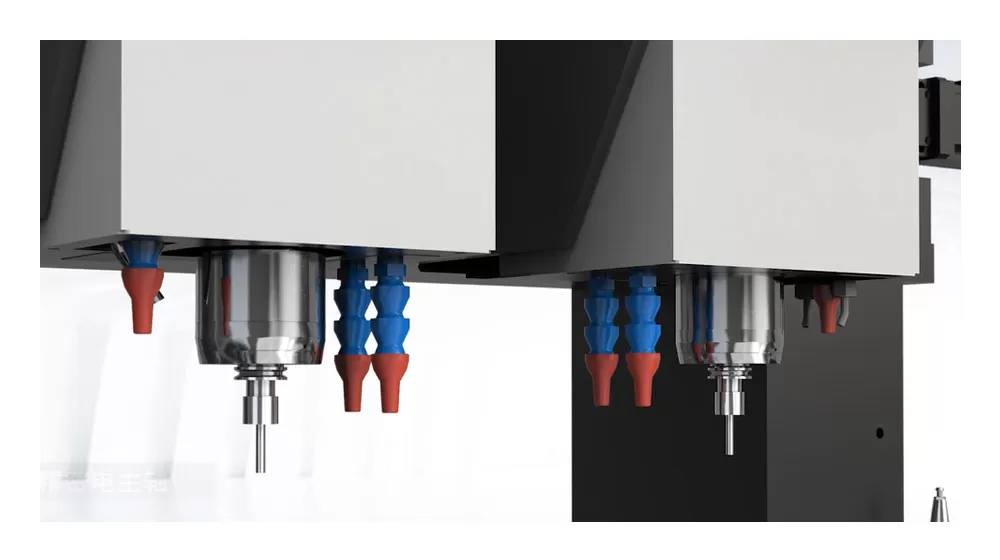

Spindle	Spindle power (Kw)	4.0
	Spindle maximum speed (rpm)	40000
	Spindle diameter (mm)	φ80
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 20
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	18T*2
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	15
Other parameters	Dimensions (front and rear * left and right * up and down mm)	225022002310
	Weight (Approx. weight: Kg)	3700
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
