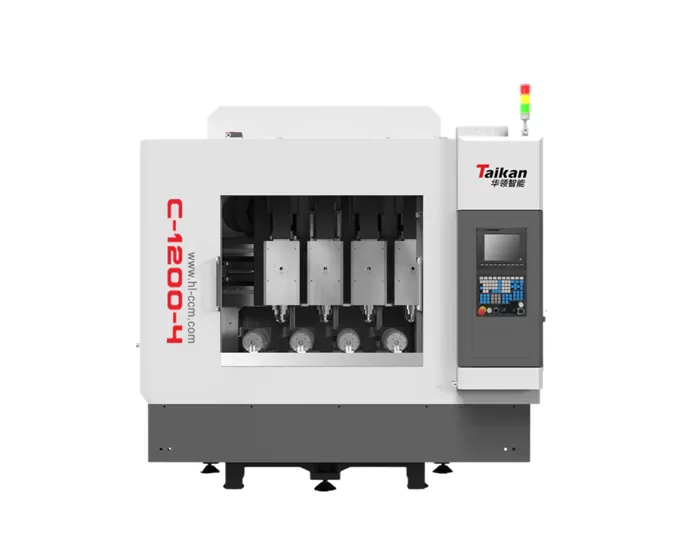

Name: C-1200-4 Multi-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.

Characteristic of C-1200-4 Multi-Head High-Speed Precision Engraving Center

Cast Iron Bed and Beam Structure

The machine's bed and beam are made from cast iron, and its structure is optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines

High-Power, High-Torque Precision Electric Spindle

Equipped with a high-power, high-torque spindle capable of handling both roughing and finishing processes with precision.

21-Tool Chain-Type Tool Magazine

Comes standard with a large 21-tool chain-type tool magazine that offers excellent protection and supports stable, high-speed machining of complex parts.

Four-Spindle Rigid Tapping Capability

Capable of simultaneous rigid tapping with four spindles, enhancing productivity for tapping operations.

High-Power, High-Torque Precision Electric Spindle

Application of C-1200-4 Multi-Head High-Speed Precision Engraving Center

C-1200-3/4 is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-1200-4 Multi-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	1200*600
	Distance from table to spindle nose (mm)	250~450
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	300
	Travel in Y direction (mm)	500
	Z travel (mm)	200
Spindle	Spindle power (Kw)	7.5
	Spindle maximum speed (rpm)	30000
	Spindle diameter (mm)	φ120
	Spindle tool change method	Pneumatic tool changer
	Shank form	BT30
Feed rate	Maximum dry run feed speed (m/min)	30
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	16T4/21T4
Tool magazine	Tool magazine form	Chain servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	48
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	4600
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
