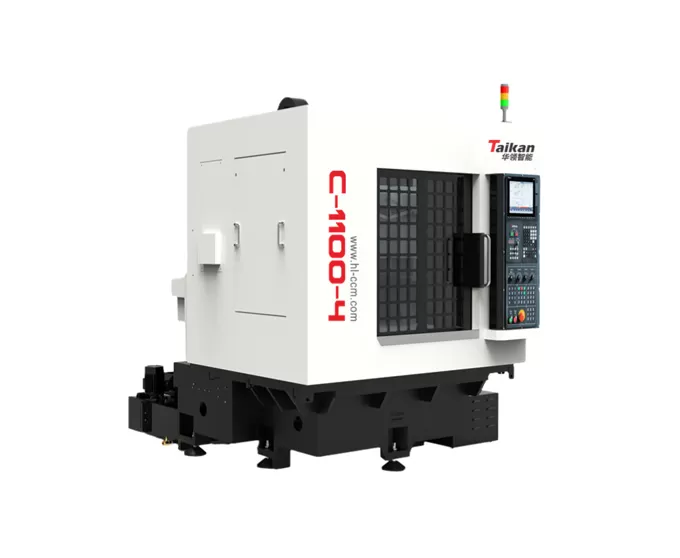

Name: C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center

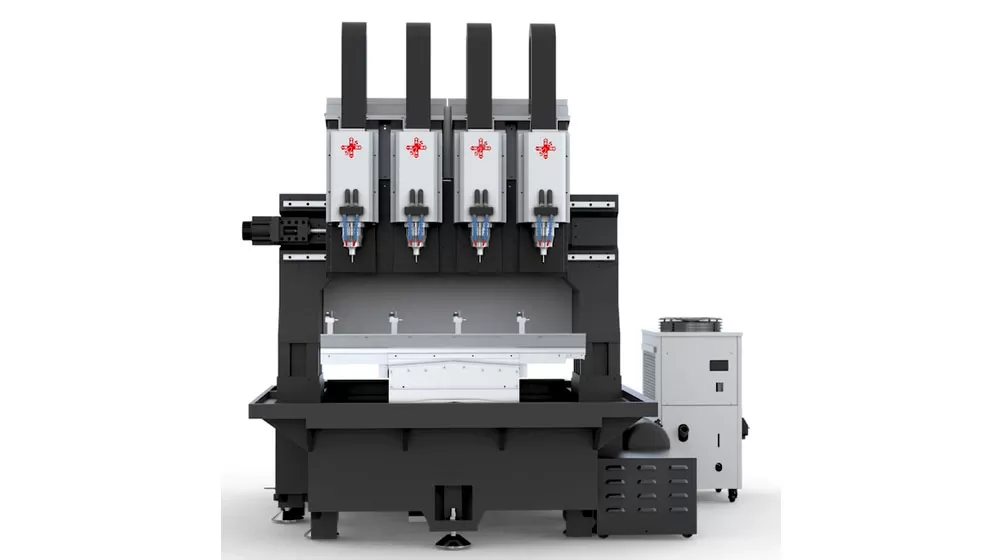

Cast Iron Bed and Beam Structure

The cast iron bed and beam are optimized using finite element analysis (FEA) for superior stability and precision retention compared to similar machines.

High-Speed φ100/ISO25 Precision Spindle

Standard configuration includes a high-speed φ100/ISO25 spindle, which is versatile enough to handle both roughing and finishing operations.

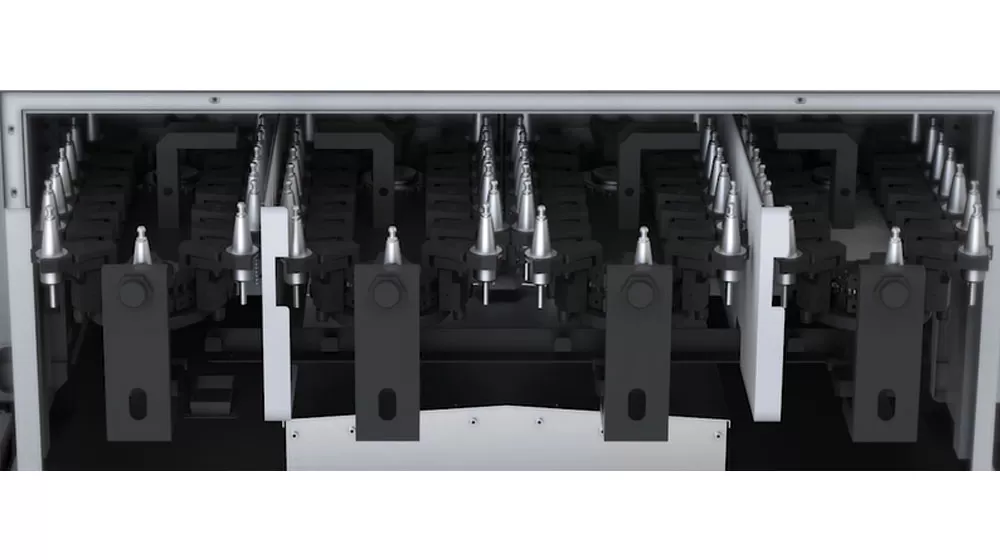

21-Tool Chain-Type Tool Magazine

Comes with a 21-tool chain-type tool magazine that offers ample capacity and excellent protection, supporting stable and high-speed machining of complex parts.

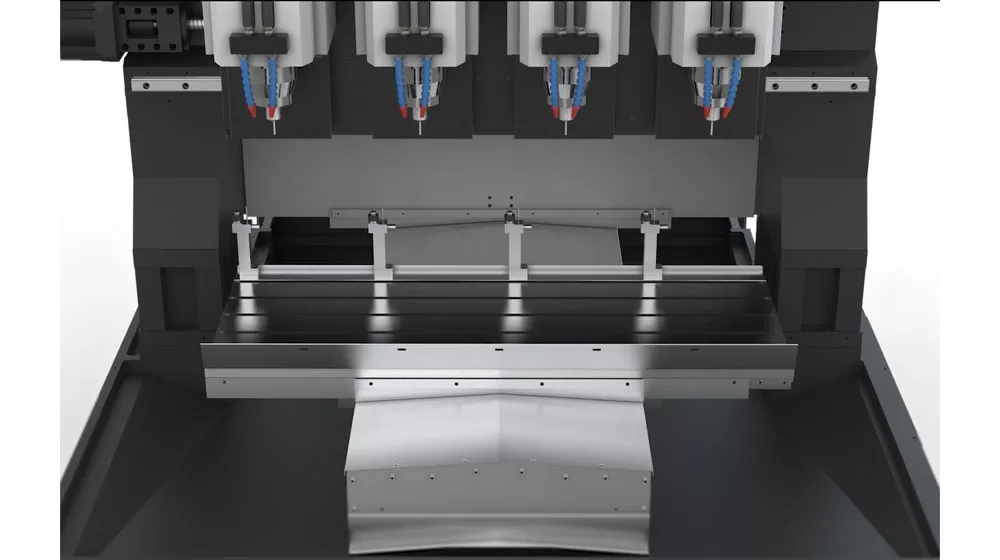

Four-Spindle Rigid Tapping Capability

Capable of performing rigid tapping with four spindles simultaneously, improving productivity for tapping operations.

Application of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center

C-1100-2/3/4 is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.

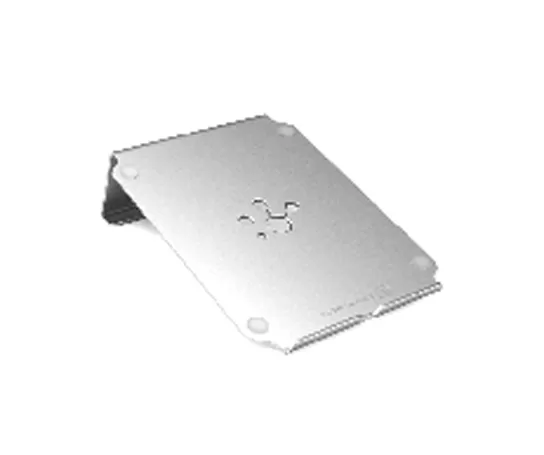

Workpiece Example 1

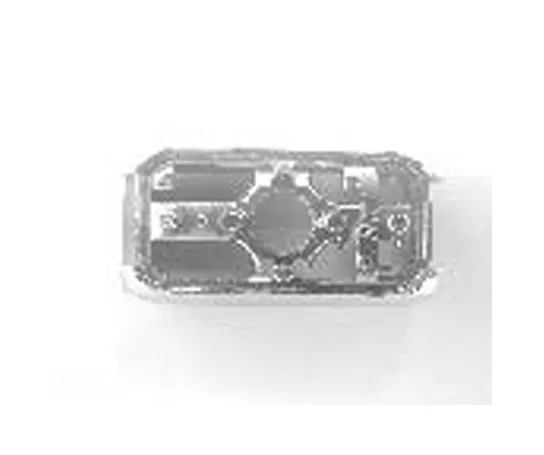

Workpiece Example 2

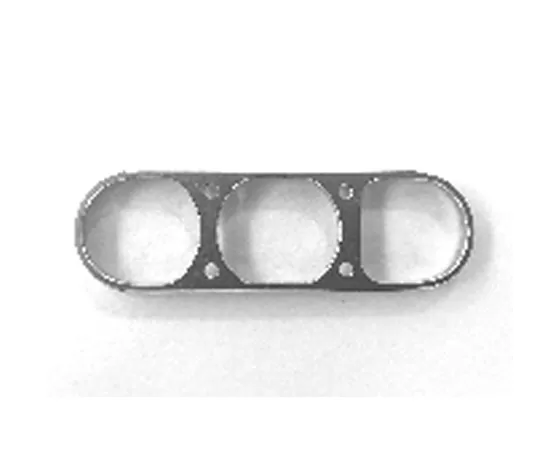

Workpiece Example 3

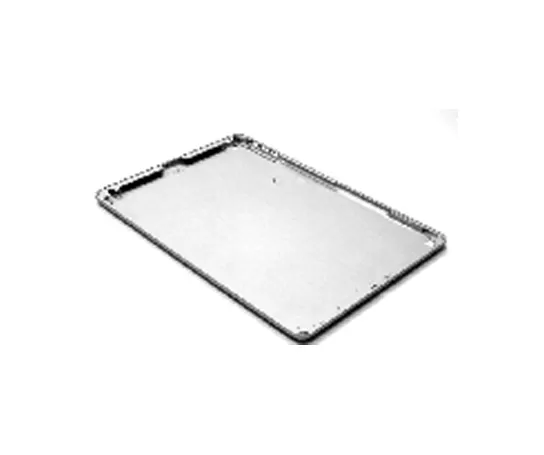

Workpiece Example 4

Specifications of C-1100-2/3/4 Multi-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	1100*500
	Distance from table to spindle nose (mm)	180~330/380
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	280
	Travel in Y direction (mm)	500
	Z travel (mm)	150 or 200
Spindle	Spindle power (Kw)	6.0/7.5
	Spindle maximum speed (rpm)	36000/30 000
	Spindle diameter (mm)	φ100/120
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 25/BT30
Feed rate	Maximum dry run feed speed (m/min)	18
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	16T 4/21T4
Tool magazine	Tool magazine form	Chain servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	32
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	4000
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
