Taikan CNC: B Series Drilling & Milling Machining Center Supplier & Factory

Types of B Series Drilling & Milling Machining Center

The machine has various specifications with X-axis travel from 500mm to 2,000mm, which can meet various machining requirements.
Equipped with direct-spindle and motorized spindle options, with maximum speeds of 12,000rpm, 2,0000rpm, and 24,000rpm.
21T/26T/30T/40T tool magazine options improve tool handling capabilities and promote process intensiveness.
It is particularly good at 3C (computer, communication, and consumer electronics) parts processing, and is also widely used in milling, drilling, and tapping processing of parts in various industries.

	UNIT	T-500B	T-500B PLUS	T-500BH	T-600B	T-700B	T-1000	T-1200	T-1300	T-1600	T-1800	T-2000
X axis travel	mm	500	500	500	600	700	1100	1200	1300	1600	1800	2000
Yaxis travel	mm	400	400	400	390	400	650	650	650	650	650	650
Zaxis travel	mm	320	320	460	320	320	410	410	410	475	475	475
Distance from spindle nose to table surface	mm	180-500	180-500	180-640	140-460	140-460	155-565	125-535	125-535	100-575	100-575	100-575
Distance from spindle nose to table surface	mm	180-500	180-500	180-640	140-460	140-460	155-565	125-535	125-535	100-575	100-575	100-575
Table size	mm	620*400	620*400	620*400	700*400	800*400	1200*600	1300*650	1300*650	1700*650	1900*650	2000*650
Max.load	kg	250	250	250	250	250	600	600	600	600	600	600
Spindle speed	rpm	20-24000	20-24000	20-24000	20-20000	20-20000	20-20000	20-20000	20-20000	20-20000	20-20000	20-20000
Spindle taper	/	BT30	BT30	BT30	BT30	BT30	BT30	BT30	BT30	BT30	BT30	BT30
Tool magazine capacity	pcs	21	21	21	21	21	21	21	21	21	21	21
Rapid traverse speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36	30/36/36	30/36/36	27/36/36
CNC system		"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"	"Mitsubishi M80VA"
		Details	Details	Details	Details	Details	Details	Details	Details	Details	Details	Details

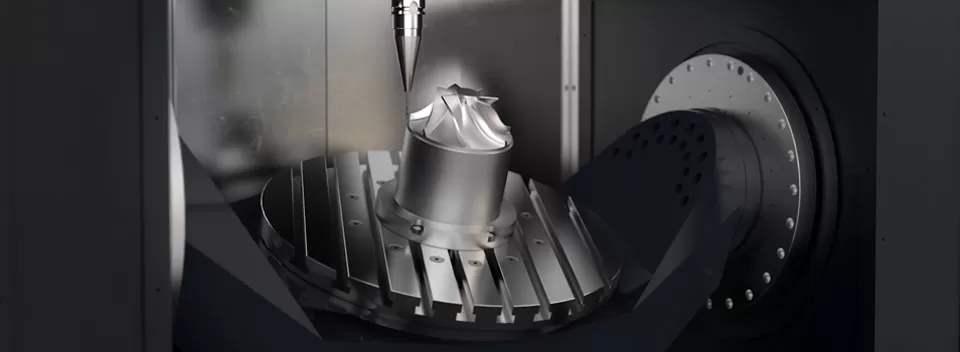

Widely used in 3C industry, automotive parts, medical equipment and other industries.
