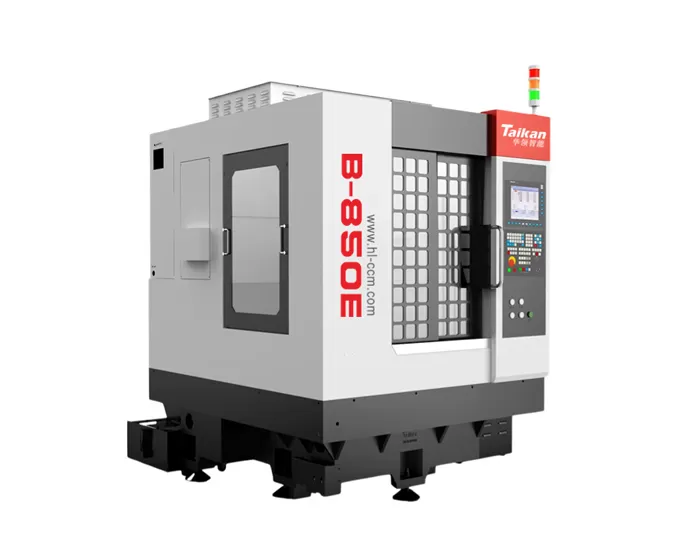

Name: B-850E Single-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of B-850E Single-Head High-Speed Precision Engraving Center

Cast Iron Bed and Beam Structure

The machine's bed and beam are made of cast iron, and its structure is optimized using computer finite element analysis (FEA) to ensure superior stability and precision retention compared to similar machines.

Customizable High-Speed Precision Spindles

Offers the flexibility to choose from different high-speed precision electric spindles based on the specific machining requirements of different products.

XY-Axis Travel of 850*600mm

Capable of handling larger workpieces with this extended travel range.

Semi-Umbrella 13-Tool Magazine

Features a stable and mature 13-tool semi-umbrella type tool magazine for efficient multi-process machining.

Customizable High-Speed Precision Spindles

Application of B-850E Single-Head High-Speed Precision Engraving Center

B-850E is ideal for edge grinding, hole drilling, chamfering, and thinning processes for automotive display glass, tablet cover glass, and other glass materials.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of B-850E Single-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm )	850*600
	Distance from table to spindle nose (mm)	180~330
	Maximum load-bearing weight ( Kg)
journey	X-direction travel (mm)	800
	Travel in Y direction (mm)	600
	Z travel (mm)	150
Spindle	Spindle power (K w)	6.0
	Spindle maximum speed (rpm)	36 000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	HSK-E32
Feed rate	Maximum dry run feed speed (m/min)	18
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.006
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.005
Tool magazine	Tool magazine capacity	13T
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	10.5
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	2850
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
