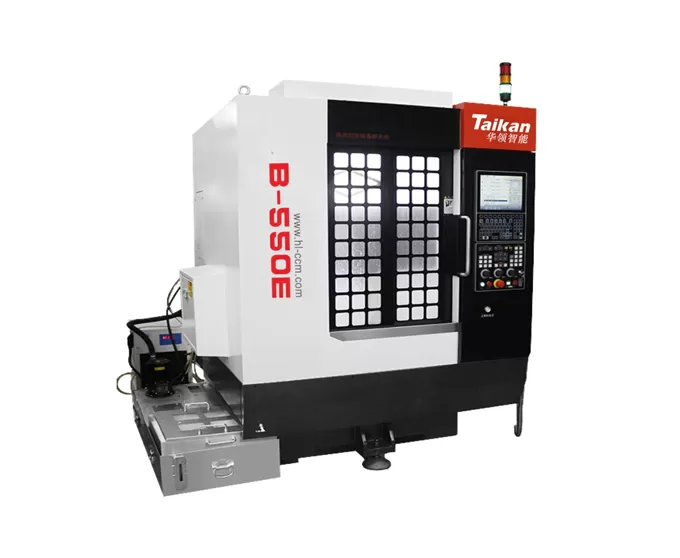

B-550E Single-Head High-Speed Precision Engraving Center

Single-Head High-Speed Precision Engraving Center


Contact

Characteristic of B-550E Single-Head High-Speed Precision Engraving Center

Taikan CNC System

Equipped with the Taichung CNC system, ensuring high precision and control.


High-Speed Electric Spindle

Features a high-speed electric spindle for efficient and accurate machining.


Cast Iron Structure

The cast iron body ensures high rigidity, providing stability during high-speed operations.


13-Tool Servo Tool Magazine

Equipped with a 13-tool servo-driven tool magazine for multi-process machining.


Taikan CNC System High-Speed Electric Spindle Cast Iron Structure 13-Tool Servo Tool Magazine

Application of B-550E Single-Head High-Speed Precision Engraving Center

The B-550E is designed for precision grinding of brittle and hard materials such as TFT glass, automotive glass, TV frames, large sheet components, glass, ceramics, and sapphire.

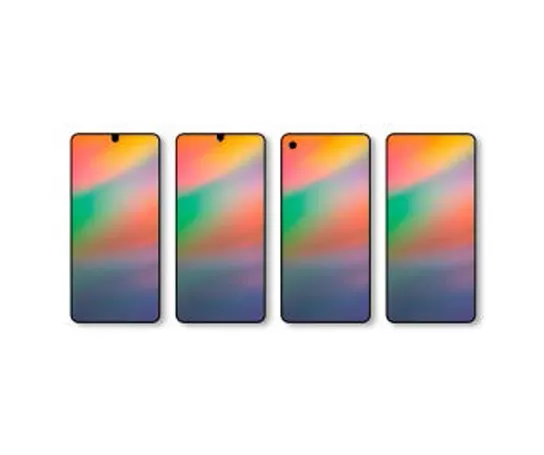

Workpiece Example 1

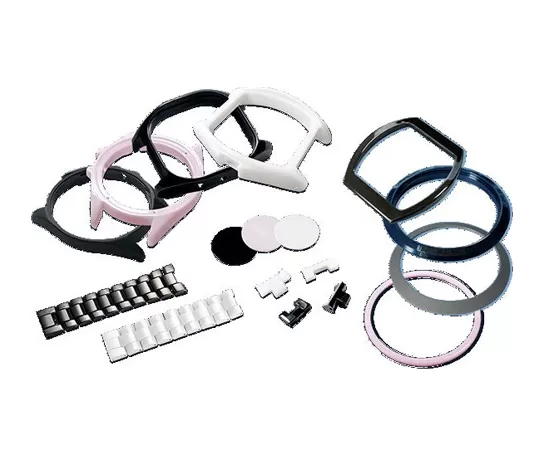

Workpiece Example 2

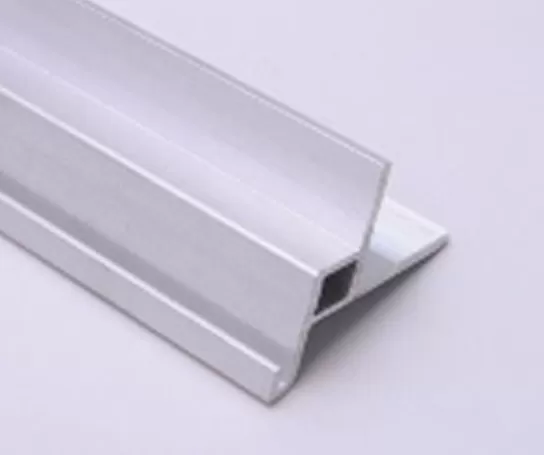

Workpiece Example 3

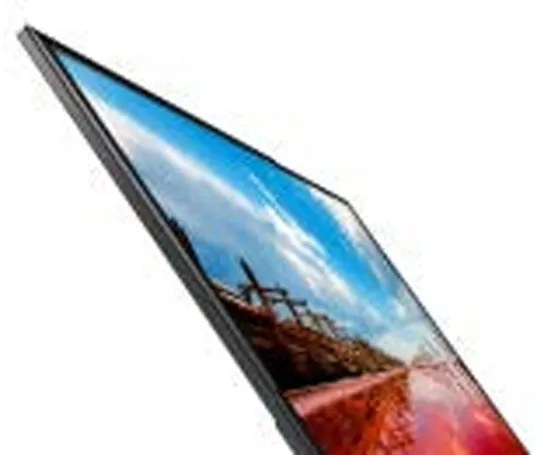

Workpiece Example 4

Specifications of B-550E Single-Head High-Speed Precision Engraving Center

name

project

Parameters

workbench

Table size (mm)

550*450

Distance from table to spindle nose (mm)

195~395

Maximum load-bearing weight (Kg)

100

journey

X-direction travel (mm)

550

Travel in Y direction (mm)

450

Ztravel (mm)

200

Spindle

Spindle power (Kw)

6.0

Spindle maximum speed (rpm)

36000

Spindle diameter (mm)

φ100

Spindle tool change method

Pneumatic tool changer

Shank form

HSK-E30

Feed rate

Maximum dry run feed speed (m/min)

15

Maximum cutting feed rate (m/min)

10

Machine tool accuracy

Positioning accuracy: X/Y/Z (mm)

0.005

Repeated positioning accuracy: X/Y/Z (mm)

0.004

Tool magazine

Tool magazine capacity

13T

Tool magazine form

Semi-umbrella servo tool magazine

power source

Air pressure (Mpa)

≥0.6

Electricity demand (Kw)

10.5

Other parameters

Dimensions (front and rear *
left and right * up and down mm)

1880*1860*2200

Weight (Approx. weight: Kg)

2700

Whether to configure network
transmission and monitoring functions

Have

Whether to configure the tool setter

Have


The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
