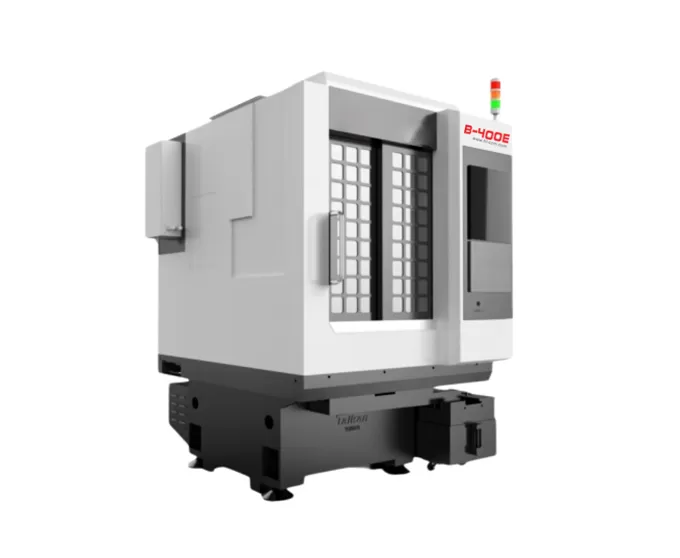

B-400E Single-Head High-Speed Precision Engraving Center

Single-Head High-Speed Precision Engraving Center


Contact

Characteristic of B-400E Single-Head High-Speed Precision Engraving Center

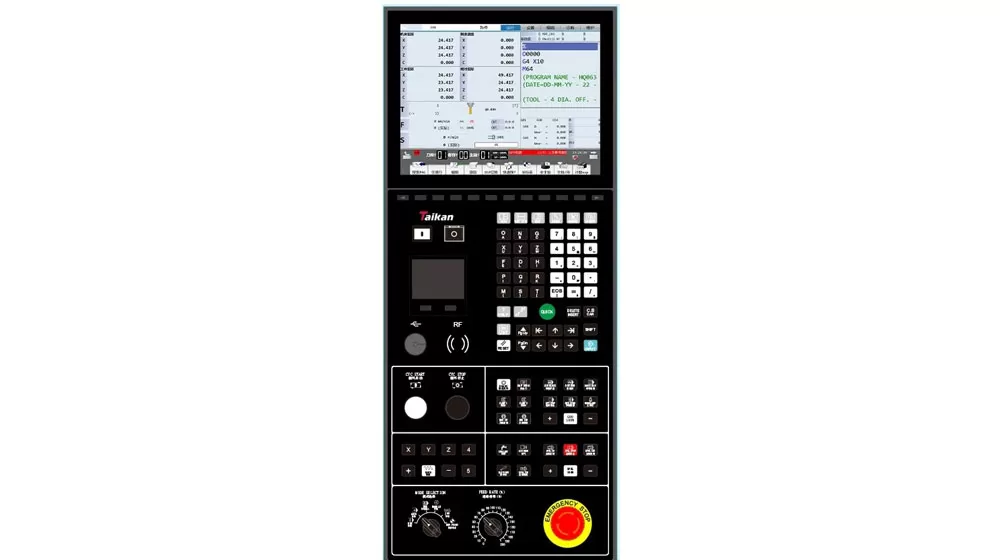

Taikan CNC System

Equipped with the high-performance Taikan CNC system for reliable control and precision.

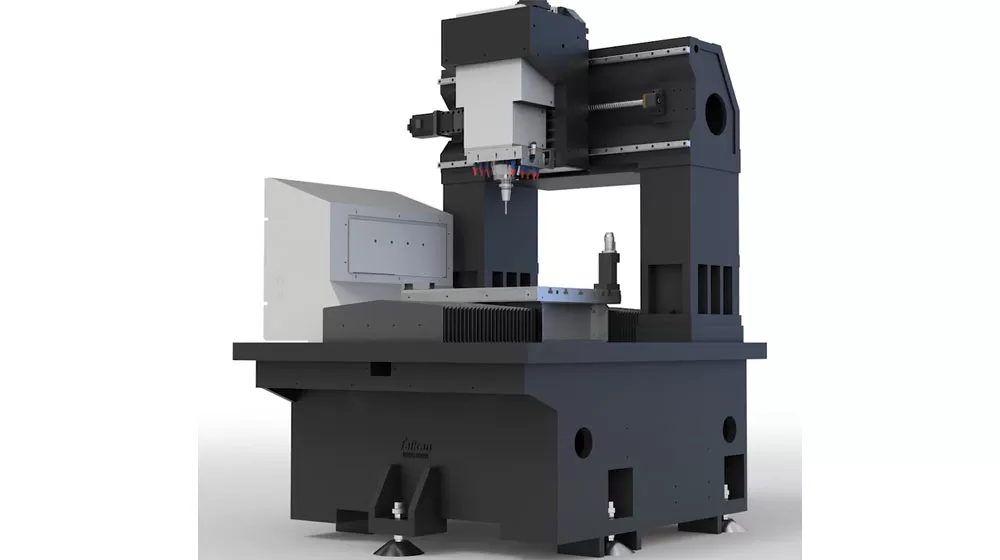

Cast Iron Bed and Beam

The machine's cast iron bed and beam provide high rigidity, ensuring stable machining performance.

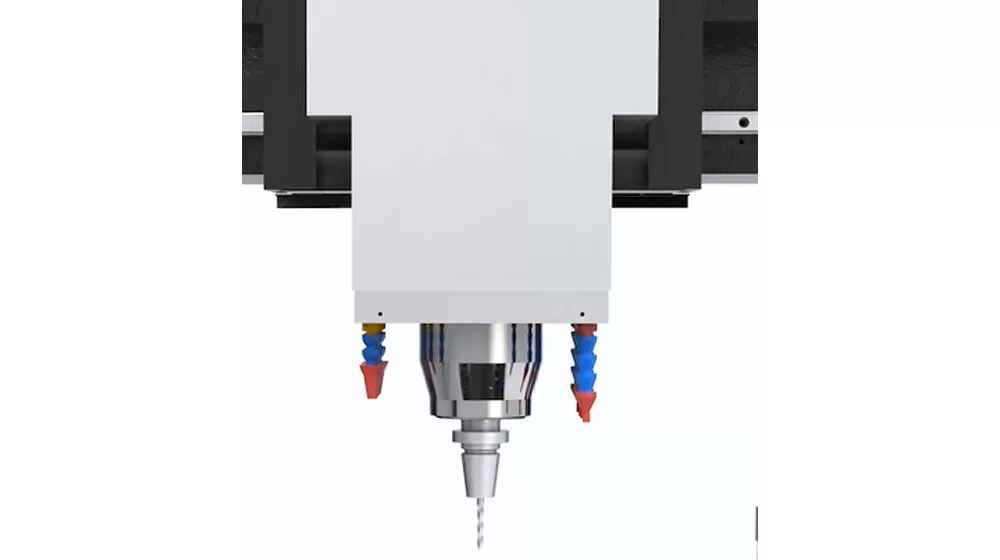

High-Precision Electric Spindle

Standard configuration includes a high-precision electric spindle for superior accuracy in machining tasks.

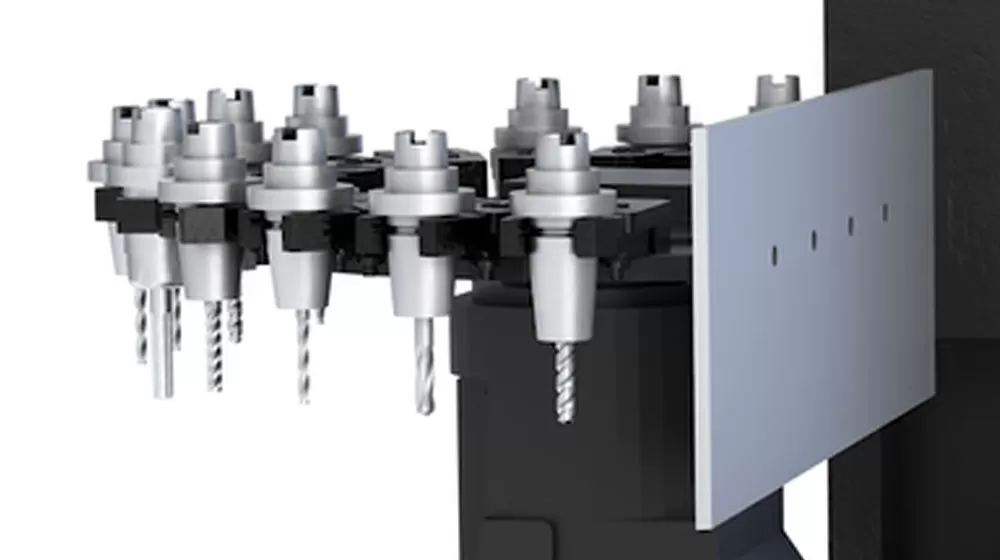

10-Tool Servo Tool Magazine

Comes with a 10-tool servo-driven tool magazine to enhance machining efficiency.


Taikan CNC System Cast Iron Bed and Beam High-Precision Electric Spindle 10-Tool Servo Tool Magazine

Application of B-400E Single-Head High-Speed Precision Engraving Center

The B-400E is ideal for drilling and fine shaping of non-metal materials such as mobile phone glass and composite decorative parts.


Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of B-400E Single-Head High-Speed Precision Engraving Center

name

project

Parameters

workbench

Table size (mm)

400*400

Distance from table to spindle nose (mm)

110~260

Maximum load-bearing weight (Kg)

100

journey

X-direction travel (mm)

400

Travel in Y direction (mm)

400

Z travel (mm)

150

Spindle

Spindle power (Kw)

4.0

Spindle maximum speed (rpm)

40 000

Spindle diameter (mm)

φ80

Spindle tool change method

Pneumatic tool changer

Shank form

ISO 20

Feed rate

Maximum dry run feed speed (m/min)

15

Maximum cutting feed rate (m/min)

8

Machine tool accuracy

Positioning accuracy: X/Y/Z (mm)

0.005

Repeated positioning accuracy: X/Y/Z (mm)

0.004

Tool magazine

Tool magazine capacity

10T

Tool magazine form

Semi-umbrella servo tool magazine

power source

Air pressure (Mpa)

≥0.6

Electricity demand (Kw)

8.5

Other parameters

Dimensions (front and rear *
left and right * up and down mm)

1550*1450*2082

Weight (Approx. weight: Kg)

1700

Whether to configure network
transmission  and monitoring functions

Have

Whether to configure the tool setter

Have


The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
