Product Characteristics

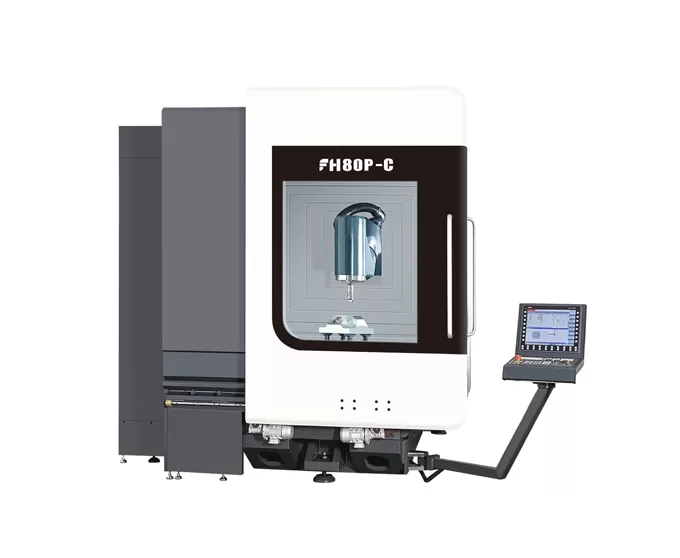

The advanced and highly stable 5-axis machine mechanism, with a simple man-machine operation mode, focuses on improving accuracy, performance and efficiency by 30% each, achieving the highest machining performance and part accuracy under high dynamic conditions. From the hardto-cut materials in the aviation industry to the highest surface quality requirements in the mold manufacturing industry, the Feihong five-axis simultaneous milling-turning compound machining center provides the best conditions.
Feihong five-axis linkage turning and milling compound machining center can realize multi-form use: vertical and horizontal conversion, milling and turning, one-time clamping, multi-process and multi-angle processing and forming
HIGHLIGHTS
Fully optimized cooling system
High rigidity guarantees highprecision
Higher performance guaranteesperfect output
Convenient and user-friendly operation
Panoramic structure is easy to maintain
Innovative tool management system
Excellent price/performance ratio in the same specification
B\C axis DD direct drive structure zero transmission chain transmission is more accurate
X, Y, Z three axis screw hollow cooling system
B-axis and C-axis high-precision absolute value rotary encoder measurement system
X, Y, Z three linear axes are equipped with high-precision linear gratings
PRECISION
Coolant cooling of the Y-axis feed motor Comprehensive and effective cooling measures support a significantly improved temperature characteristic
PERFORMANCE
HSKA63 electric spindle torque 132Nm power 34KW
Workbench rigidity increased by 40%
Rigid ball screw with a diameter of 50mm
45mm wide linear guide
EFFICIENCY
Small footprint, extremely compact chain magazine for minimal setup times
Higher machine availability
Best serviceability and best ergonomics through unrestricted accessibility
B-axis: Improved interference profile for higher rigidity!
Product Parameters
| Item | FH60P-C | FH80P-C | FH100P-C | FH135P-C | FH170P-C | FH210P-C |
| X/Y/Z axis travel | 600×800×600mm | 800×1050×800mm | 1000×1150×1000mm | 1450×1450×1000mm | 1700×1700×1100mm | 2100×2100×1300mm |
| Distance from horizontal milling head center to working table | 30~630mm | 39~839mm | 30~1030mm | 30~1030mm | 130~1230mm | 130~1430mm |
| Rotary table speed | 350rpm | 300rpm | 250rpm | 53rpm | 53rpm | 30rpm |
| Working table size | φ660mm | φ880mm | φ1100mm | φ1400mm | φ1700mm | φ1800mm |
| Max. table load | Milling 2000kg | Milling 3000kg | Milling 4000kg | Milling 4000kg | Milling 8000kg | Milling 8000kg |
| Turning 1000kg | Turning 1500kg | Turning 3000kg | Turning 3000kg | Turning 5000kg | Turning 5000kg | |
| Swing milling head (B axis) | Standard | Standard | Standard | Standard | Standard | Standard |
| Swing range (0=Vertical/180=Level) | -15°~ +180° | -15°~ +180° | -15°~ +180° | -15°~ +180° | -15°~ +180° | -15°~ +180° |
| B axis rated speed | 50rpm | 50rpm | 50rpm | 50rpm | 60rpm | 50rpm |
| Distance from vertical spindle nose to table | 150~750mm | 162~962mm | 160~1160mm | 160~1160mm | 236~1336mm | 236~1536mm |
| Electric spindle Max. speed | 12000rpm | 12000rpm | 10000rpm | 10000rpm | 10000rpm | 10000rpm |
| Power（S1-100%/40%DC） | 34/42kW | 34/42kW | 42/58kW | 42/58kW | 48/71kW | 48/71kW |
| Torque（S1-100%/40%DC） | 132/192Nm | 132/192Nm | 215/350Nm | 215/350Nm | 300/452Nm | 300/452Nm |
| Spindle taper | 1:10 Taper | 1:10 Taper | 1:10 Taper | 1:10 Taper | 1:10 Taper | 1:10 Taper |
| Tool interface | HSK-A63 | HSK-A63 | HSK-A100 | HSK100A | HSK100A | HSK100A |
| Tool magazine capacity | 40T | 40T | 40T | 40T | 40T | 40T |
| Max. tool diameter/length/weight | φ85mm/300mm/8kg | φ85mm/300mm/8kg | φ135mm/300mm/12kg | φ135mm/300mm/12kg | φ135mm/300mm/12kg | φ135mm/300mm/12kg |
| Tool changing time (Tool to Tool) | 4s | 4s | 4s | 4s | 4s | 4s |
| Drilling (Normalizing medium carbon steel) | φ40mm | φ40mm | φ50mm | φ50mm | φ50mm | φ50mm |
| Tapping (Normalizing medium carbon steel) | M24 | M24 | M40 | M40 | M40 | M40 |
| Rapid traverse | 40m/min | 40m/min | 40m/min | 40m/min | 40m/min | 40m/min |
| X/Y/Z positioning accuracy | 0.006mm | 0.006mm | 0.006mm | 0.006mm | 0.012mm | 0.012mm |
| X/Y/Z repeat positioning accuracy | 0.004mm | 0.004mm | 0.004mm | 0.004mm | 0.01mm | 0.01mm |
| B/C positioning accuracy | 8" | 8" | 8" | |||
| B/C repeat positioning accuracy | 4" | 4" | 4" | |||
| Infrared probe | Renishaw OMP60 | Renishaw OMP60 | Renishaw OMP60 | |||
| Tool setting gauge(Tool measuring in machining area) | Renishaw NC4F230 | Renishaw NC4F230 | Renishaw NC4F230 | |||
| Machine height (Standard machine) | 2985mm | 3350mm | 3650mm | 4150mm | ||
| Main body occupied area(L*W) | 4300×2600mm | 4800×2930mm | 5170×3340mm | 5905×4100mm | ||
| Tool magazine occupied area (L*W) | 2100×1250mm | 1710×1350mm | 1915×1400mm | 2200×1600mm | ||
| Chip conveyor occupied area (L*W) | 3070×1065mm | 3070×1065mm | 3120×1065mm | 3700×1250mm | ||
| Water tank occupied area(L*W) | 1785×1355mm | 1785×1355mm | 1785×1355mm | |||
| Complete machine occupied area(excluding water tank) (L*W) | 5200×3550mm | 5610×3600mm | 6000×3750mm | |||
| Machine weight | 23000kg | 30000kg | 35000kg | 42000kg | ||
| Control system | Siemens ONE | Siemens ONE | Siemens ONE | Siemens ONE | Siemens ONE | Siemens ONE |
Remark：The above information is for reference only and may be varied at delivery；The company's products are constantly improving and the above information is subject to change without notice.
