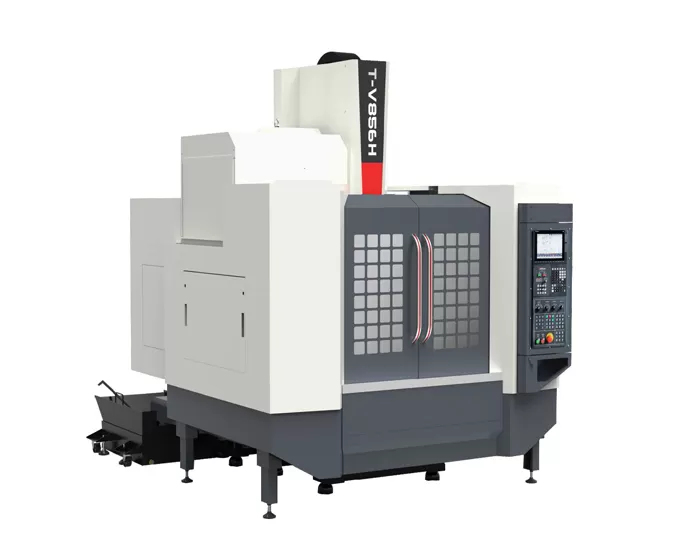

T-V856H Vertical Machining Center

T-V856H Vertical Machining Center

The three-axis ballscrew adopts central oil cooling to reduce the thermal extension and backlash of the ball screw.
T-V856S T-V1165S T-856L T-V1055S T-V1270S T-V1375S T-V1475S T-V1585S T-V1685S T-1060L T-1375L T-1585L T-8 T-10 T-12 T-15 T-V856H T-V1165H T-V850M T-V1165M DT-50 T-V6 T-V18 T-1685L

Get a quote

Product Characteristics


The three-axis ballscrew adopts central oil cooling to reduce the thermal extension and backlash of the ball screw, thus improving the machining accuracy of the product. As the ball screw is fully cooled, the wear caused by heatgeneration is reduced, the service life of the ball screwis improved, and the stability of the machine is enhanced.The three-axis adopts No. 45 roller linear quide way, which has high rigidity and good vibration absorption effect can meet the needs of light tool surface for precision molds.Constanttemperature cooling designofnoseenddirectspindle,low temperature rise,goodthermalextension. Equipped with high-speed and high-precision M80A, or FANUC(package 3 or1) with mold function, it can meet the requirements of complex surface machining. The spindle adopts BBT form (optional), the end face and the radial force aresimultaneously stressed which increases the cutting rigidity of the tool Bearings adopt Japan NSK/Germany FAG， electric components adopt Schneider, pneumatic components adopts SMC. Thetool magazine is controlled by encoder and frequency converter, with stable performance and fast tool change speedT to Tis about 1.2s.



Product Parameters

Item parameter Unit T-V856H
Traveling X axis mm 800
Y axis mm 550
Z axis mm 600
The distacne from spindle end face to work table mm 125-725
Working table Working table size mm 1000*500
Maximum loading kg 450
Max spindle speed rpm 12000
Spindle power kw 7.5/11
Torque N.m 35.8/70
Guide X axis / 2-35
Y axis / 2-45
Z axis / 2-45
Tool Tool magazine capacity / 24
Spindle taper / BT40
Maxi tool dia.(with/without adjacent tool) mm 75/150
Maxi tool length mm 250
Max tool weight kg 7
Feeding rate x/y/z rapid speed rate m/min 30/30/30
x/y/z feeding rate mm/min 1-10000
Accuracy Positioning accuracy mm 0.008
Repeatability mm 0.005
Size　 Machine size mm 2240*3121*3026
Machine Weight kg 4600
